Connector Stations
Main fuse, connector stations, relay/fuse carriers, fuse panel, from August 2004
Connector stations
2 - Connector station - right A-pillar
• on lower right A-pillar, behind trim
Fuse colors
10 A - red
30 A - green

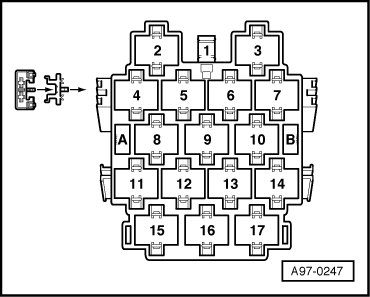

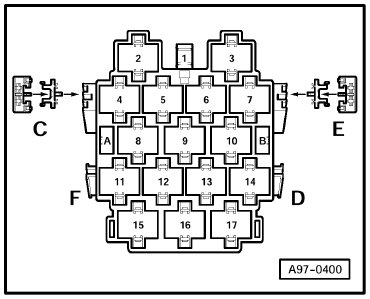

position connectors:
Item - Designation Component
11 - T10q-10-position connector, violet Police (siren)
12 - T10r-10-position connector, brown Police (warning system)
13 - T6p-6-position connector, violet Digital TV tuner (USA)
14 - T6q-6-position connector, violet Digital TV tuner (USA)
15 - T17c-17-position connector, red Headlight
16 - T10y-10-position connector, blue Headlight
Fuses:
Item - Socket color Designation Fuse rating
E - black Fuse for seat adjustment (S46) 30 A
E - black Fuse for seat adjustment (lumbar support adjustment) (S46) 10 A
Note::
• Remaining items in connector station are not used.
Fig. 3 Connector station - RF seat wiring
• under front passenger seat
position connectors:
Item - Designation Component
1 - T3d-3-position connector, yellow Side airbag
2 - T10p-10-position connector, red Supply
3 - T6e-6-position connector, green Seat heating
4 - T8c-8-position connector, black Belt lock
Fig. 4 Connector station - LF seat wiring
• under driver seat
position connectors:
Item - Designation Component
1 - T3c-3-position connector, yellow Side airbag
2 - T10o-10-position connector, red Supply
3 - T6d-6-position connector, green Seat heating
4 - T8b-8-position connector, black Belt lock
Fig. 5 - Connector station - left A-pillar
• on lower left A-pillar, behind trim
position connectors:
Item - Designation Component
8 - T10i-10-position connector, blue Parking aid
9 - T17g-17-position connector, dark brown Roof (connector 1)
10 - T17f-17-position connector, orange Roof (connector 2)
11 - T6r-6-position connector, brown Servotronic
12 - T10k-10-position connector, white Auxiliary heater
13 - T10c-10-position connector, violet Wiper moor
14 - T10d-10-position connector, grey Fan/compressor
15 - T17b-17-position connector, green Left headlight (connector 3)
16 - T17a-17-position connector, red Left headlight (connector 2)
17 - T17-17-position connector, black Left headlight (connector 1)
Note::
• Remaining items in connector station are not used.
Fig. 6 - Connector station with threaded connection
• in electronics box, plenum chamber
position connectors:
Item - Designation Components
2 - T17j-17-position connector, brown Engine/transmission (connector 3)
3 - T17d-17-position connector, red Engine/transmission (connector 1)
6 - T17e-17-position connector, white Engine/transmission (connector 2)
Note::
• Remaining items in connector station are not used.
Fig. 7 - Relay carrier (9-position) with vehicle voltage control module
• behind instrument panel, driver`s side, behind relay carrier (3-position)
Position of relays:
Item - Socket color Designation
1 - green J17-Fuel Pump (FP) Relay
2 - red J236-Servotronic Control Module
3 - green J695-Starter Relay 2 1)
4 - brown J53-Starter Relay 2 1) - J569-Brake Booster Relay 2), ³)
5 - purple J9-Rear Window Defogger Relay
6 - black J59-Load Reduction Relay
8 - black J4-Horn Relay
4 - brown J569-Brake Booster Relay 2), ⁴)
Notes::
• Remaining items in relay carrier are not used.
• 1) for engine codes AUK, BKH, BNS only
• 2) not applicable for engine codes AUK, BKH
• 3) applicable up to 2005 m. y.
• 4) applicable from 2006 m. y.
Fig. 7 - Relay carrier (9-position) with vehicle voltage control module
• behind instrument panel, driver`s side, behind relay carrier (3-position)
Fuse colors
10 A - red
30 A - green
40 A - orange
Fuses:
Item - Socket color Designation Fuse rating
A - brown S100-Rear Shade Circuit Breaker 10 A
B - brown S100-Rear Shade Circuit Breaker 10 A
B - brown S184-Power Outlet Fuse 1 (Driving School) 10 A
D - brown S280-Window Regulator Fuse 2 30 A
E - red S45-Driver's Power Seat Adjustment Circuit Breaker 2 30 A
E - red S45-Driver's Power Seat Adjustment Circuit Breaker 2 (Lumbar Support Adjustment) 10 A
F - black S37-Power Window Fuse 30 A
G - green S87-Trailer Circuit Breaker 1) 30 A
Notes::
• Remaining items in relay carrier are not used.
• 1) Applicable up to 2005 model year
Fig. 8 - Relay carrier (4-position) with threaded connection
• behind instrument panel, driver`s side
Position of relays:
Item - Socket color Designation
3 - white J662-NG Engine Throttle Relay 1 (Driver training vehicle)
4 - blue J663-NG Engine Throttle Relay 2 (Driver training vehicle)
4 - blue J610-Alarm - On/Hands-free Control Module (not applicable to US/CDN)
Note::
• Remaining items in relay carrier are not used.
Fig. 8 - Relay carrier (4-position) with threaded connection
• behind instrument panel, driver`s side
Fuse colors
10 A - red
30 A - green
40 A - orange
60 A - light-blue
Fuses:

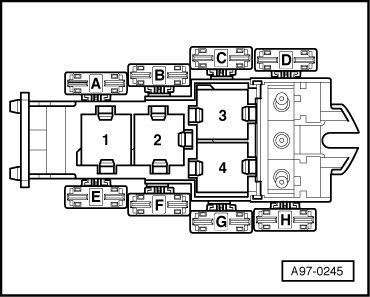

Item - Socket color Designation Fuse rating
B - Optional equipment: repeller system
E - black S51-Fuse (Driver training vehicle) 1) 10 A
F - black S51-Fuse (Driver training vehicle) ³) 10 A - S42-Coolant Fan Fuse 1) 40 A - S42-Coolant Fan Fuse 2) 40/60 A
G - black S214-Radiator After run Fuse2) 30 A - S214-Radiator After run Fuse 1) 40 A - S42-Coolant Fan Fuse ⁴) 40/60 A
H - brown S123-ABS Control Module Fuse 1 40 A
Notes::
• Remaining items in relay carrier are not used.
• 1) for engine codes BBK, BHF, BNS only
• 2) for engine codes BKN only
• 3) not for engine codes BBK, BHF
• 4) not for engine codes BKN, BBK, BHF
Fig. 9 - Relay carrier (4-position), engine codes BGB, BPG, BYK, BWT
• in electronics box, plenum chamber
Position of relays:
Item - Socket color Designation
1.2 - blue J207-Starting Interlock Relay
2 - brown J271-Motronic Engine Control Module (ECM) Power Supply Relay
3 - black J757-Engine Component Power Supply Relay
Note::
• Remaining items in relay carrier are not used.
Fig. 9 - Relay carrier (4-position), engine codes BGB, BPG, BYK, BWT
• in electronics box, plenum chamber
Fuse colors
15 A - blue
20 A - yellow

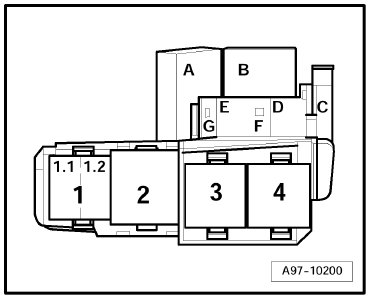

Fuses:
Item - Socket color Designation Fuse rating
A - blue S282-Engine Electronics Fuse 15 A
B - brown S345-Engine Electronics Fuse 3 15 A
C - grey S102-Engine Control Module (ECM) Fuse 15 A
D - yellow S131-Safety Fuse 1 20 A
E - black S344-Engine Electronics Fuse 2 15 A
G - purple S286-Automatic Transmission After-Run Fuse 15 A
Note::
• Remaining items in relay carrier are not used.
Fig. 9 - Relay carrier (4-position), engine codes BFB, BBK, BHF
• in electronics box, plenum chamber
Position of relays:
Item - Socket color Designation
1.1 - blue J151-Coolant Circulation Pump Relay
1.2 - blue J207-Starting Interlock Relay - J434-Starter, Clutch Pedal Switch Locking Relay 1)
2 - brown J271-Motronic Engine Control Module (ECM) Power Supply Relay
3 - black J299-Secondary Air Injection (AIR) Pump Relay
Notes::
• Remaining items in relay carrier are not used.
• 1) engine codes BBK, BHF only
Fig. 9 - Relay carrier (4-position), engine codes BFB, BBK, BHF
• in electronics box, plenum chamber
Fuse colors
5 A - beige
15 A - blue
20 A - yellow
20 A - orange
Fuses:
Item - Socket color Designation Fuse rating
A - blue S344-Engine Electronics Fuse 2 15 A
B - black S130-Secondary Air Injection (AIR) Pump Fuse 40 A
C - grey S286-Automatic Transmission After-Run Fuse 15 A
D - yellow S102-Engine Control Module (ECM) Fuse 20 A
E - black S116-Injectors Fuse 15 A
G - red S282-Engine Electronics Fuse 15 A
Note::
• Remaining items in relay carrier are not used.
Fig. 9 - Relay carrier (4-position), engine codes AUK, BKH
• in electronics box, plenum chamber
Position of relays:
Item - Socket color Designation
1.1 - blue J496-Auxiliary Engine Coolant (EC) Pump Relay
2 - brown J271-Motronic Engine Control Module (ECM) Power Supply Relay
3 - black J757-Engine Component Power Supply Relay
Note::
• Remaining items in relay carrier are not used.
Fig. 9 - Relay carrier (4-position), engine codes AUK, BKH
• in electronics box, plenum chamber
Fuse colors
15 A - blue
20 A - yellow

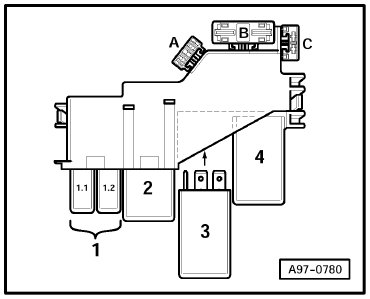

Fuses:
Item - Socket color Designation Fuse rating
A - blue S344-Engine Electronics Fuse 2 15 A
B - brown S282-Engine Electronics Fuse 15 A
C - grey S102-Engine Control Module (ECM) Fuse 15 A
D - yellow S131-Safety Fuse 1 20 A
E - black S73-Heated Oxygen Sensor (HO2S) Circuit Breaker 15 A
G - purple S286-Automatic Transmission After-Run Fuse 15 A
Note::
• Remaining items in relay carrier are not used.
Fig. 9 - Relay carrier (4-position), engine codes BNS
• in electronics box, plenum chamber
Position of relays:
Item - Socket color Designation
1.1 - blue J151-Coolant Circulation Pump Relay
1.2 - blue J569-Brake Booster Relay
2 - brown J271-Motronic Engine Control Module (ECM) Power Supply Relay
3 - black J757-Engine Component Power Supply Relay
4 - black J299-Secondary Air Injection (AIR) Pump Relay
Fig. 9 - Relay carrier (4-position), engine codes BNS
• in electronics box, plenum chamber
Fuse colors
10 A - red
15 A - blue
30 A - green
50 A - red
Fuses:
Item - Socket color Designation Fuse rating
A - blue S344-Engine Electronics Fuse 2 10 A
B - brown S282-Engine Electronics Fuse 15 A
C - grey S102-Engine Control Module (ECM) Fuse 15 A
D - yellow S131-Safety Fuse 1 30 A
E - black S73-Heated Oxygen Sensor (HO2S) Circuit Breaker 15 A
E - red S283-Brake Vacuum Pump Fuse 15 A
H 1) - black S130-Secondary Air Injection (AIR) Pump Fuse 50 A
Notes::
• 1) on underside of relay carrier
• Remaining items in relay carrier are not used.
Fig. 9 - Relay carrier (4-position), engine codes BBJ
• in electronics box, plenum chamber
Position of relays:
Item - Socket color Designation
1.1 - blue J151-Coolant Circulation Pump Relay 1)
1.2 - blue J207-Starting Interlock Relay 1)
2 - brown J271-Motronic Engine Control Module (ECM) Power Supply Relay 1)
3 - black J299-Secondary Air Injection (AIR) Pump Relay 1)
Notes::
• Remaining items in relay carrier are not used.
• 1) manual transmission or automatic transmission (multitronic 01J/multitronic 0AN) only
Fig. 9 - Relay carrier (4-position), engine codes BBJ
• in electronics box, plenum chamber
Fuse colors
15 A - blue
20 A - yellow
40 A - orange
Fuses:
Item - Socket color Designation Fuse rating
A - blue S344-Engine Electronics Fuse 2 1) 15 A
B - black S130-Secondary Air Injection (AIR) Pump Fuse 1) 40 A
C - grey S286-Automatic Transmission After-Run Fuse 1) 15 A
D - yellow S102-Engine Control Module (ECM) Fuse 1) 20 A
E - black S116-Injectors Fuse 1) 15 A
G - red S282-Engine Electronics Fuse 1) 15 A
Notes::
• Remaining items in relay carrier are not used.
• 1) manual transmission or automatic transmission (multitronic 01J/multitronic 0AN) only
Fig. 9 - Relay carrier (4-position), engine codes BBJ
• in electronics box, plenum chamber
Position of relays:
Item - Socket color Designation
1.1 - blue J151-Coolant Circulation Pump Relay 1)
1.2 - blue J207-Starting Interlock Relay 1)
2 - brown J271-Motronic Engine Control Module (ECM) Power Supply Relay 1)
3 - black J299-Secondary Air Injection (AIR) Pump Relay 1)
Notes::
• Remaining items in relay carrier are not used.
• 1) automatic transmission (AG5) only
Fig. 9 - Relay carrier (4-position), engine codes BBJ
• in electronics box, plenum chamber
Fuse colors
15 A - blue
20 A - yellow
40 A - orange
Fuses:
Item - Socket color Designation Fuse rating
A - yellow S102-Engine Control Module (ECM) Fuse 1) 20 A
B - black S130-Secondary Air Injection (AIR) Pump Fuse 1) 40 A
C - red S282-Engine Electronics Fuse 1) 15 A
D - blue S344-Engine Electronics Fuse 2 1) 15 A
E - black S116-Injectors Fuse 1) 15 A
Notes::
• Remaining items in relay carrier are not used.
• 1) automatic transmission (AG5) only
