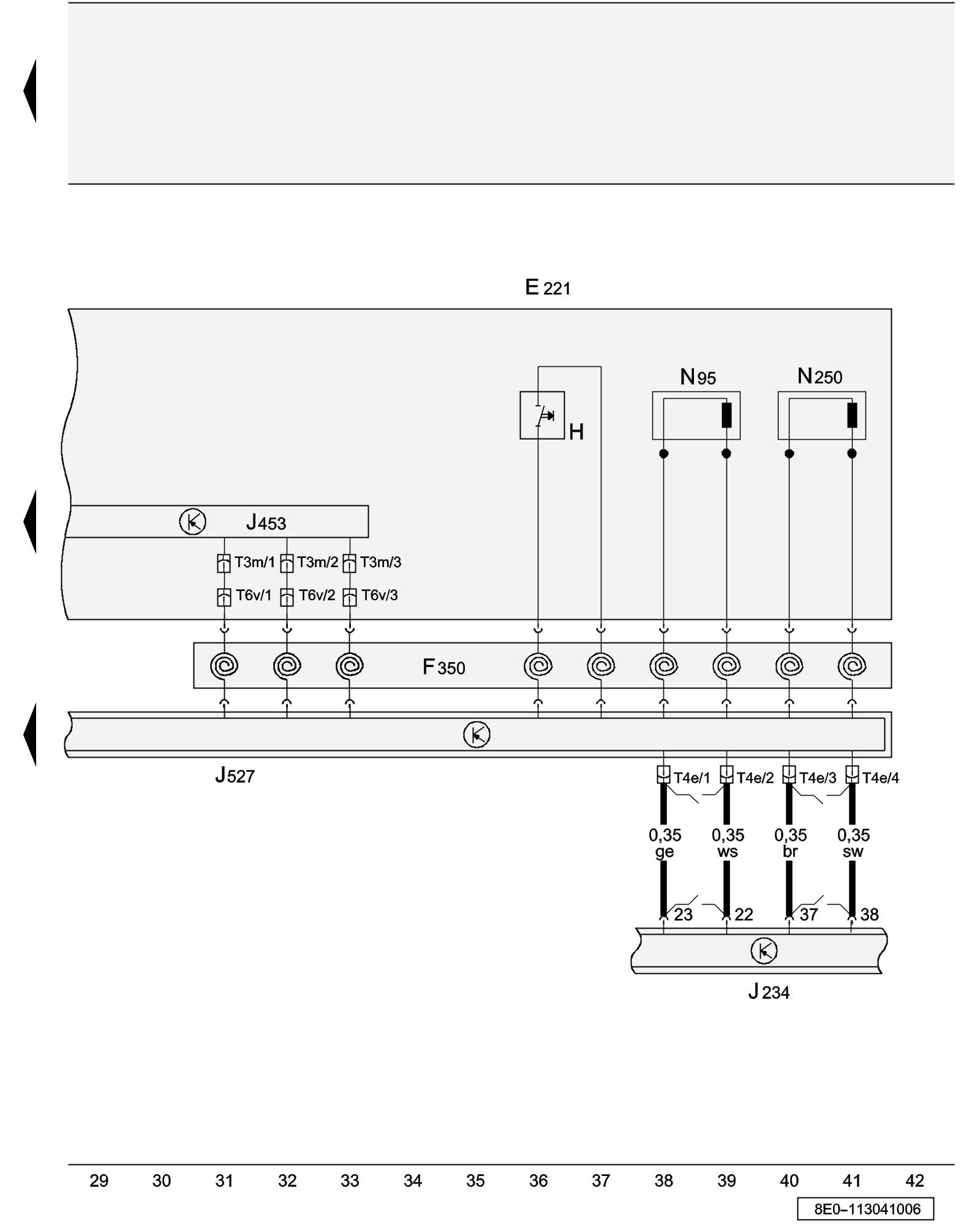

Diagram 113/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Driver's Airbag Igniter





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E221 - Control Module in Steering Wheel

F350 - Spiral Spring

H - Signal Horn Activation

J234 - Airbag Control Module

J453 - Multi-function Steering Wheel Control Module

J527 - Steering Column Electronic Systems Control Module

N95 - Driver's Airbag Igniter Airbag Component Location

N250 - Driver's Airbag Igniter 2 Airbag Component Location

T3m - 3-Pin Connector, white

T4e - 4-Pin Connector, yellow, connector station: module carrier in interior

T6v - 6-Pin Connector, white

- Short circuit bridge becomes effective when connector is unplugged
