Tiptronic Switch

Tiptronic Switch

Two versions of the multi-function steering wheel are used.

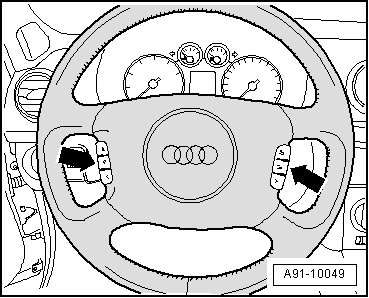

Multi-function steering wheel with two blocks of buttons





Tiptronic Switch, removing and installing (below).

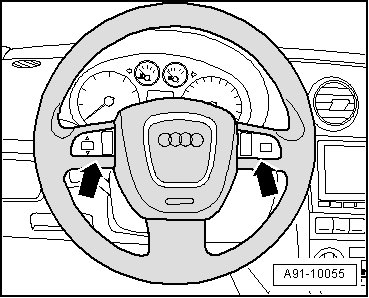

Multi-function steering wheel with roller buttons





Tiptronic Switch, removing and installing (below).

Multi-function steering wheel with two blocks of buttons

Removing

- In vehicles with Telematics, activate Telephone/Telematics Control Module (J526)=> [ Telematics Service Mode, Activating/Deactivating ] Procedures service mode.

- Disconnect battery ground wire.

- Follow safety precautions for airbag systems.

- Remove driver's airbag Removal and Installation.

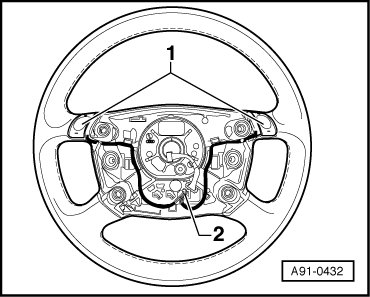

- Disconnect electrical connection - 2 -.





- Rotate buttons - 1 - inward (to steering wheel center point) and remove.

Installing

- Install in reverse order.

- Ensure all connections have engaged and lines lie in corresponding guides.

Multi-function steering wheel with roller buttons

Removing

- In vehicles with Telematics, activate Telephone/Telematics Control Module (J526)=> [ Telematics Service Mode, Activating/Deactivating ] Procedures service mode.

- Disconnect battery ground wire.

- Follow safety precautions for airbag systems.

- Remove driver's airbag. Removal and Installation.

- Pull off decorative ring from steering wheel.

- Slide multi-function button - 2 - out of steering wheel in direction of arrow.





- Turn the button around.

- Disconnect harness connector - 2 - at multi-function button - 1 -.





- Remove bolt - arrow - and remove Tiptronic switch downward.





Installing

- Install in reverse order.

Removing and installing the left switch is identical.
