Clutch: Specifications

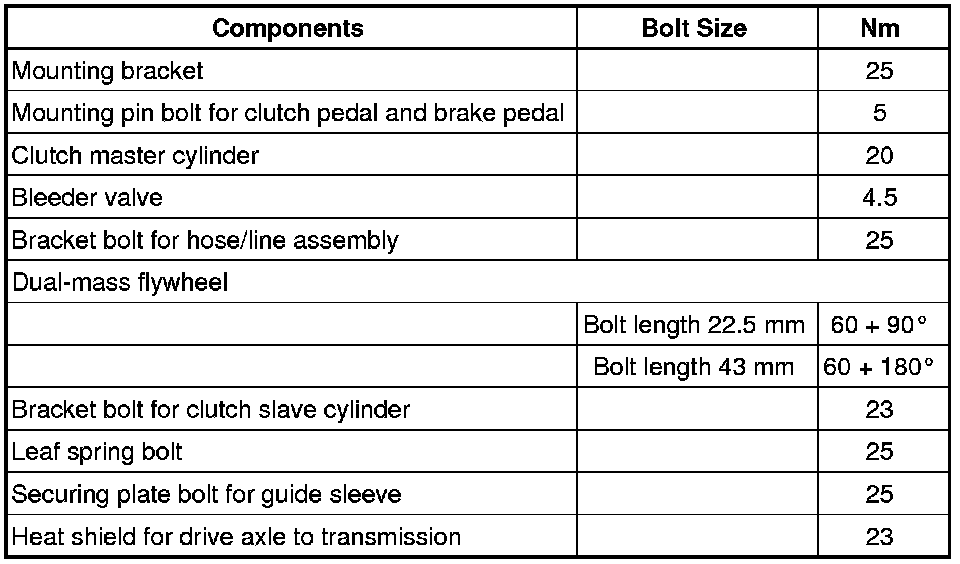

Fastener Tightening Specifications





SAC Pressure Plate
Screw in all 6 bolts evenly, by hand, until the bolt heads contact the pressure plate
Tighten all 6 bolts clockwise one after the other in stages of 90° (1/4 rotation) until housing comes in contact with flywheel.
Tighten all 6 bolts clockwise one after another a to the final specification of 22 Nm plus an additional 90° turn
