Adjustment Overview

Adjustment overview

Note:

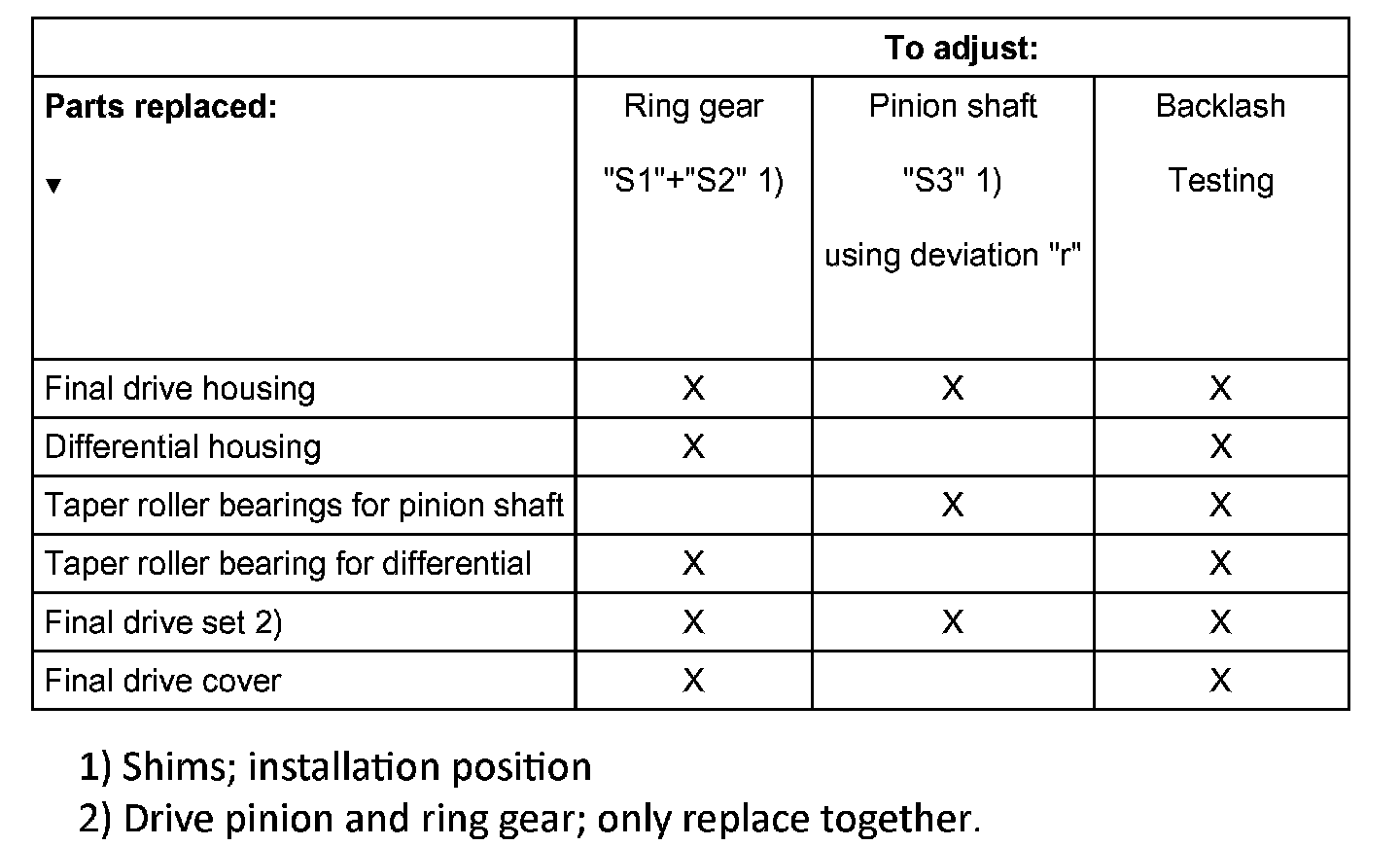

^ If performing assembly work on the final drive it is only necessary to adjust the drive pinion or final drive set if components have been replaced which have a direct effect on the adjustments of the final drive. To eliminate unnecessary adjustments observe following table:
