Rear Final Drive 0AR Identification

Rear Final Drive 0AR Identification

• Code letters, transmission allocations, ratio, capacities. Refer to => Rear Final Drive 0AR Transmission and Drivetrain

• For repairs on driveshaft or rear final drive. Refer to =>
Transmission and Drivetrain Transmission and Drivetrain

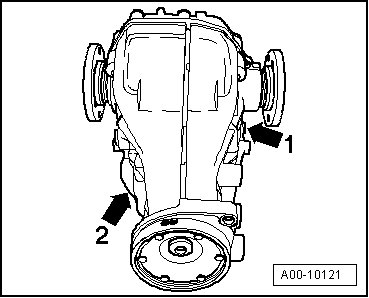

Location on final drive

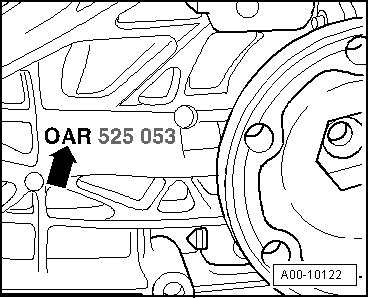

0AR final drive - arrow 1 -





Code letters and production date - arrow 2 -

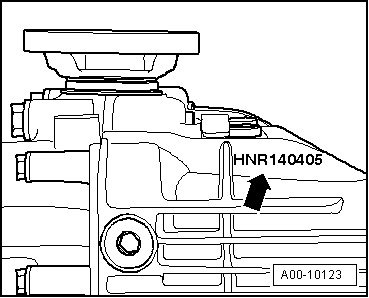

0AR final drive - arrow -

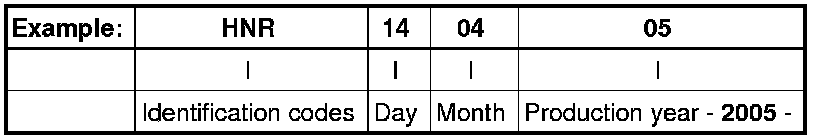

Code letters and date of manufacture of rear final drive - arrow -









Additional data can be ignored.
