Door Window

Door Window

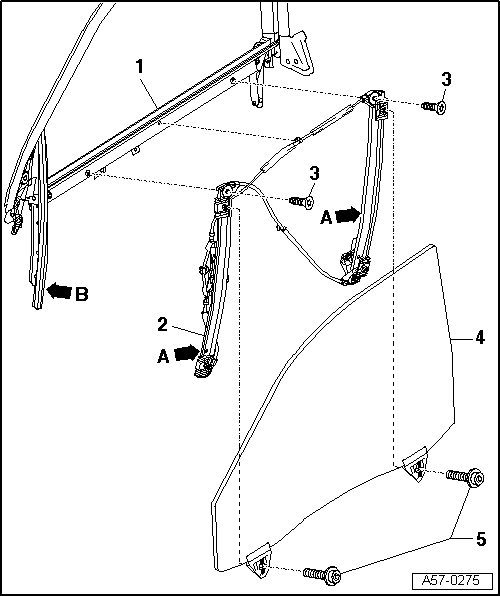

1 - Window frame

• Removing:

• Remove door trim.

• Window frame with window regulator removed from front door => [ Window Frame and Regulator ] Window Frame and Regulator.

• Door window - 4 - removed

• To remove, unscrew countersunk screws - 3 - and remove window regulator from window frame.

• Installation:

• When installing, make sure that both guide rails, - arrows A -, run parallel to guide - arrow B -.

• Tighten bolts - 3 - to 6 Nm.

2 - Window regulator

• Window frame with window regulator removed from front door => [ Window Frame and Regulator ] Window Frame and Regulator.

• Door window removed.

• To remove, unscrew countersunk screws - 3 - and remove window regulator from window frame.

3 - Countersunk screw

• 6 Nm

4 - Window

• Removing:

• Drive down door window fully.

• Unscrew bolts - 5 - and remove door windows from window regulator.

• Installing:

• Insert window into window regulator.

• Screw bolts - 5 - into window regulator, but do not tighten yet.

• Drive door window upward into window frame.

• Pull door window toward rear into window guide on window frame at B-pillar and tighten bolts - 5 - to 4 Nm.

5 - Socket head bolt

• 4 Nm
