TV System, Through 29 August 2008

TV System

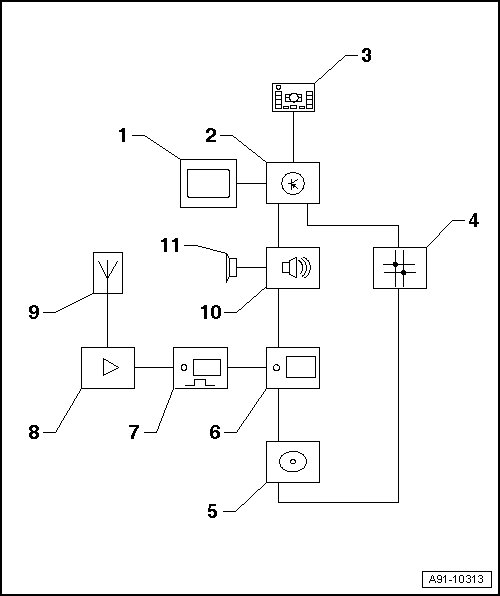

TV System, through 29 August 2008





1 Front Information Display Control Head (J685)

• In the center of the instrument panel.

2 Front Information Display Control Head Control Module (J523)

• Behind glove compartment.

3 Multimedia System Control Head (E380)

• In bottom of the center console.

4 Data Bus On Board Diagnostic Interface (J533)

• Behind glove compartment.

5 Media Player, Position 1 (R118)/Media Player, Position 2 (R119)

• In glove compartment.

6 TV Tuner (R78) (Analog/Hybrid)

• Behind left luggage compartment side trim.

7 Digital TV Tuner (R171) (up to Model Year 05)

• Behind left luggage compartment side trim.

8 Antenna Amplifier (R24)

• Behind left side roof end panel.

9 Rear Window Antennas

10 Digital Sound System Control Module (J525)

• Behind left luggage compartment side trim.

11 Sound Systems
