Small Storage Compartment

Center Console with Extension

Small Storage Compartment

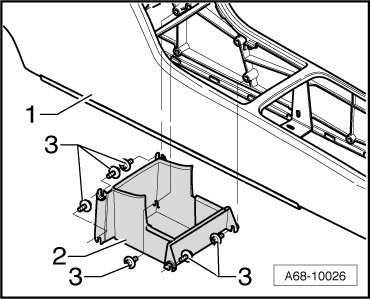

- Remove center console extension => [ Center Console Extension ]. Center Console Extension





- Remove bolts - 3 - (Qty. 6). 2.5 Nm.

- Remove small storage compartment - 2 - down and out.

1 Center console extension
