Center Console Storage Compartment, One-Piece Center Armrest

Center Console without Extension

Center Console Storage Compartment, One-Piece Center Armrest

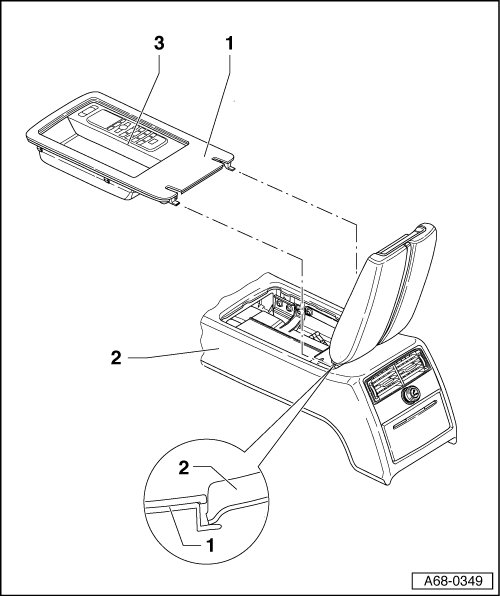

1 - Storage compartment

• With headphones jack as an option

• Removing

- Switch off ignition.

- Bring center armrest upward.

- Unclip storage compartment - 1 -.

- Swivel storage compartment upward and at the same time pull storage compartment out of center console - 2 - in the direction of vehicle travel.

- On vehicles with headphones jack - 3 -, disconnect electrical harness connector.

- Remove storage compartment - 1 -.

• Installing

Installation is reverse of removal.

2 - Center Console

3 - Handset mount

•
