Outer Seat Belt Strap

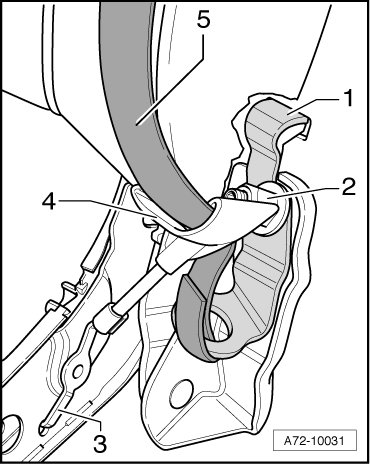

- Feed belt webbing - 5 - out of belt webbing holder - 4 -.

- Disengage belt webbing holder - 4 - at lug - 3 -.

- Pull belt webbing holder - 4 - forward in direction of arrow.

- Remove nut - 2 -. Tightening torque: 55 Nm.

- Remove center armrest tab - 1 -.
