Rear Memory Seat Control Module, Separating From Carrier Plate

Individual Power Rear Seats

Rear Memory Seat Control Module, Separating from Carrier Plate





Removing

- On vehicles with center console extension: Remove center console extension => [ Center Console Extension ] Center Console with Extension.

- On vehicles without center console extension: Remove center section => [ Center Seat Section ]. Center Seat Section

- Remove carrier plate for control modules => [ Control Module Carrier Plate ]. Control Module Carrier Plate

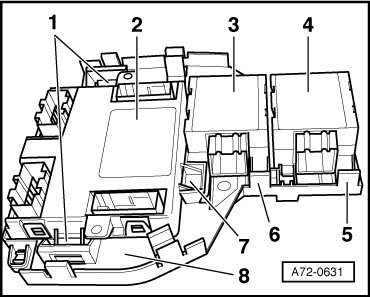

- Pry out clips - 1 - and - 7 - (Qty. 2).

- Remove control module - 2 -.

Installing

- Press control module - 2 - into carrier plate - 8 -.
