Exhaust Flap Vacuum Diaphragm, Checking

Exhaust Flap Vacuum Diaphragm, Checking

Special tools, testers and auxiliary items required

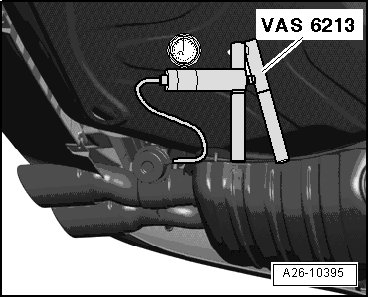

• Hand Vacuum Pump (VAS 6213)

Procedure

- Disconnect hose on vacuum diaphragm for exhaust flap at rear muffler.





- Connect hand vacuum pump to vacuum diaphragm.

- Generate vacuum using hand vacuum pump.

• Linkage must move upward.

- Vent the hand vacuum pump.

• Linkage must move downward.

If linkage does not move:

- Check the linkage for ease of movement and check the vacuum diaphragm for leaks.
