Steering Column Switch Module, Assembly

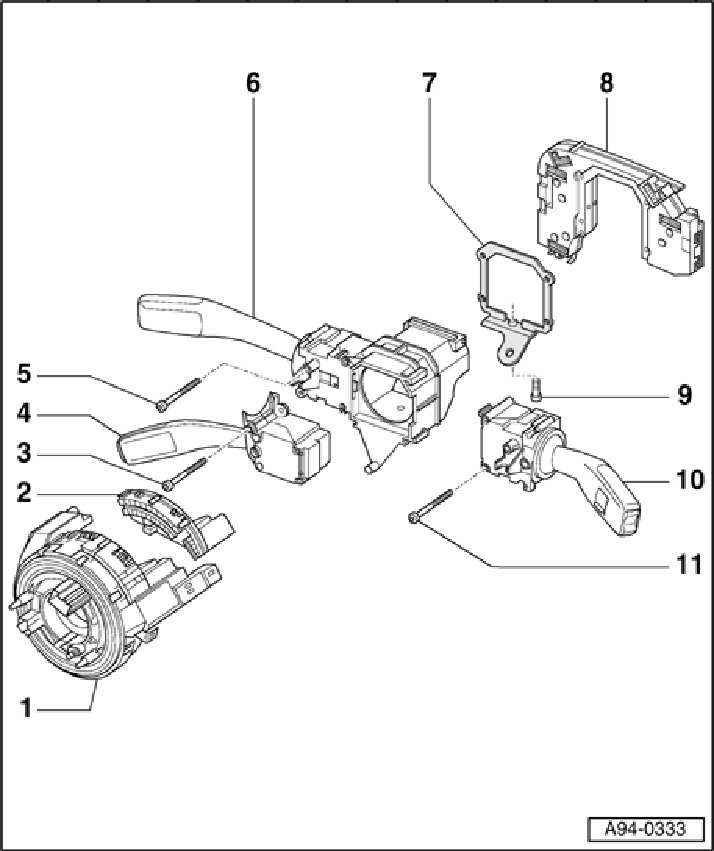

Steering Column Switch Module, Assembly







1 - Spiral spring

CAUTION: Position of spiral spring must not be changed once removed.

2 - Steering Angle Sensor G85
3 - Socket head bolt
4 - Cruise Control Switch E45
5 - Socket head bolt
6 - Turn Signal Switch E2
7 - Retaining clip
8 - Steering Column Electronic Systems Control Module J527
- Multi-pin connector assignments.
9 - Clamping bolt - 3 Nm
10 - Windshield Wiper/Washer Switch E22
11 - Socket head bolt
