Navigation System II-D Navigation Interface, Connectors






Navigation System II-D Navigation Interface, Connectors

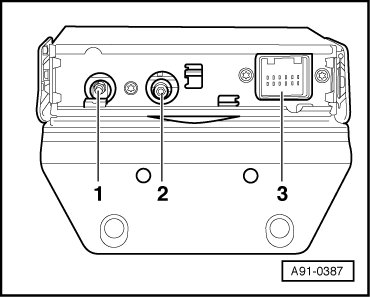

1 HF connection (black) to Operating Electronics, Navigation Control Module (J402)
2 HF connection (black) to Antenna Selection Control Module (J515)/Left Antenna Module (R108)
3 Black 12-pin multi-pin harness connector

• Unlisted connector terminals are not assigned.

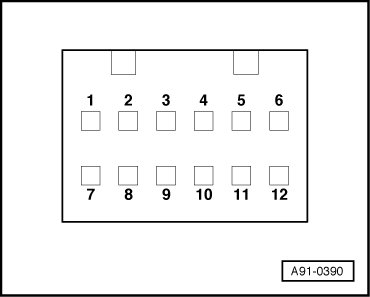

3 - Black 12-pin multi-pin harness connector





2 CAN-Bus Low (Infotainment)
3 CAN-Bus High (Infotainment)
6 Terminal 30
8 CAN-BUS Low (BOSCH)
9 CAN-BUS High (BOSCH)
12 Terminal 31
