Control Module

Control Module

• The control module for power seat with memory is located beneath the driver's seat.

• With malfunctioning control module, the upper frame of seat pan with backrest must be removed:

- Remove seat. Refer to => [ Seat ] Seat.

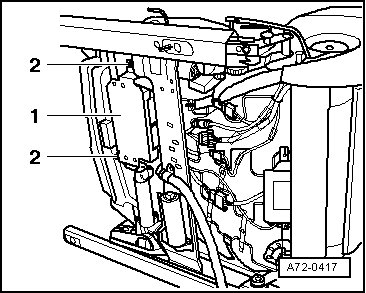

- Remove bolts - 2 - (Qty. 2). Tightening specification 1.5 Nm.

- Turn control module - 1 - around.

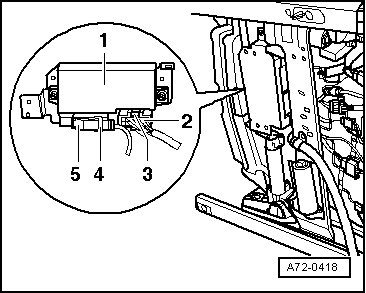

- Disengage retaining bracket - 4 - and disconnect connector - 5 -.





- Press in catches - 3 - (Qty. 2) and disconnect connector - 2 -.

- Remove control module - 1 -.
