Cruise Control Switch: Service and Repair

Cruise Control Switch E45, Removing And Installing

Removing
- Remove steering column switch module.

CAUTION:
- Ensure steering is in straight ahead and centered prior to removing spiral spring.
- Position of spiral spring must not be changed once removed.

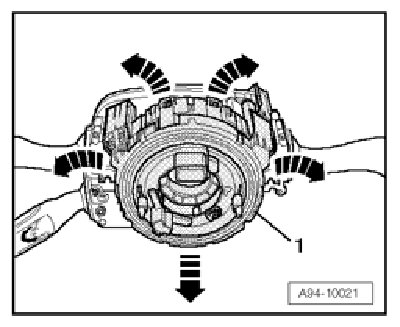

- Carefully release clip fasteners - arrows - and remove spiral spring - 1 - from steering column switch module.

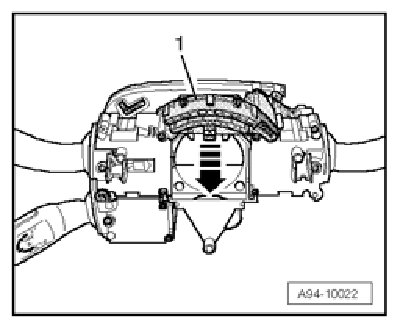

- Remove Steering Angle Sensor G85 - 1 - from Steering Column Electronic Systems Control Module J527 in direction of - arrow -.

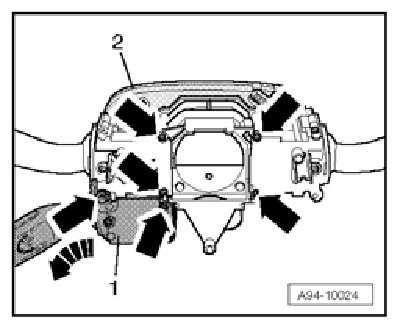

- Remove screws - arrows -.
- Remove Steering Column Electronics Systems Control Module J527 - 2 - from steering column switch module.
- Remove Cruise Control Switch E45 - 1 - from steering column switch module.

Installing
Further Install in reverse order of removal, noting the following:
- Ensure all fasteners and electrical connectors are properly connected and locked into place.
- Install steering column switch module.

Tightening torques

Component Nm
Steering column switch module 0.6 Nm
to Steering Column Electronics
Systems Control Module J527
Intermittent wiper switch E22 to 0.6 Nm
Steering Column Electronics
Systems Control Module J527
Cruise Control Switch E45 to 0.6 Nm
Steering Column Electronic
Systems Control Module J527
