Antenna Selection Control Module

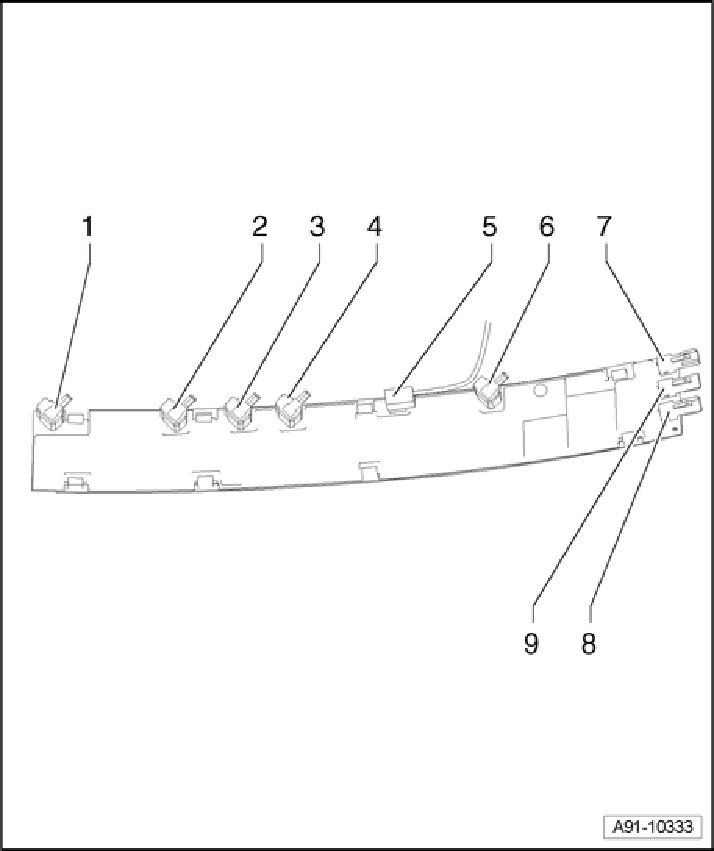

Antenna Selection Control Module, Sedan







1 - TV1 connection to Navigation/TV Tuner J415
2 - TV2 connection to Navigation/TV Tuner J415
3 - TS connection to Auxiliary Heater Radio Receiver R64
4 - TV3 connection to Navigation/TV Tuner J415
5 - Ground connection
6 - TV4 connection to Navigation/TV Tuner J415
7 - HF connection (white) to Radio R / Navigation System with CD Drive Control Module J401 / Radio/Navigation Display Control Module J503
8 - CLS connection (gray) to Comfort System Central Control Module J393
9 - HF connection (yellow) from Radio R/ Navigation System with CD Drive Control Module J401 / Radio/Navigation Display Control Module J503
