Navigation Interface, Connectors



Navigation Interface, Connectors

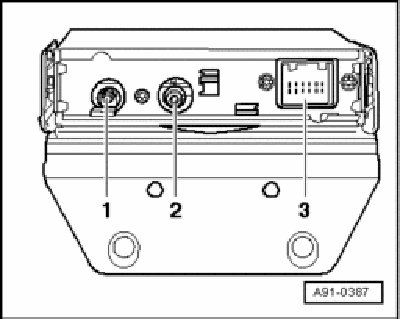

1 - HF connection (black) to Operating Electronics, Navigation Control Module J402
2 - HF connection (black) to Antenna Selection Control Module J515 / Left Antenna Module R108
3 - Black 12-pin multi-pin harness connector

NOTE: Unlisted connector terminals are not assigned.

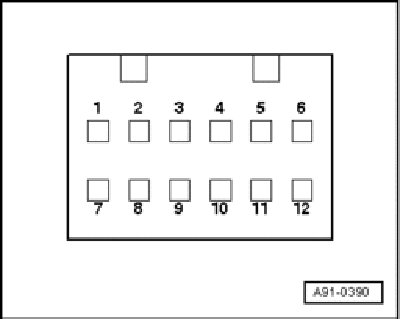

3 - Black 12-pin multi-pin harness connector
2 - CAN-Bus Low (Infotainment)
3 - CAN-Bus High (Infotainment)
6 - Terminal 30
8 - CAN-BUS Low (BOSCH)
9 - CAN-BUS High (BOSCH)
12 - Terminal 31
