Digital Sound System Control Module



Digital Sound System Control Module

NOTE: Unlisted connector terminals are not assigned.

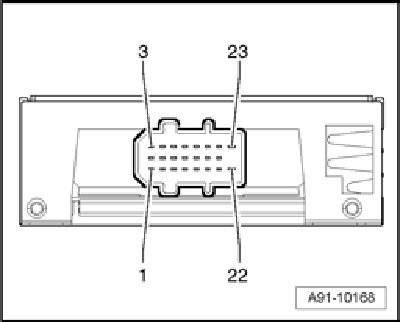

Blue 23-pin multi-pin connector
1 - Right rear signal from Radio R / Navigation System with CD Drive Control Module J401 / Radio/Navigation Display Control Module J503
2 - Signal ground from Radio R / Navigation System with CD Drive Control Module J401 / Radio/Navigation Display Control Module J503
3 - Left rear signal from Radio R / Navigation System with CD Drive Control Module J401 / Radio/Navigation Display Control Module J503
9 - Positive switched from Radio R / Navigation System with CD Drive Control Module J401 / Radio/Navigation Display Control Module J503
14 - Bass Loudspeaker R100 (+)
15 - Bass Loudspeaker R100 (-)
17 - Loudspeaker, left rear (+)
18 - Loudspeaker, left rear (-)
20 - Loudspeaker, right rear (+)
21 - Loudspeaker, right rear (-)
22 - Terminal 31
23 - Terminal 30.
