Steering Wheel

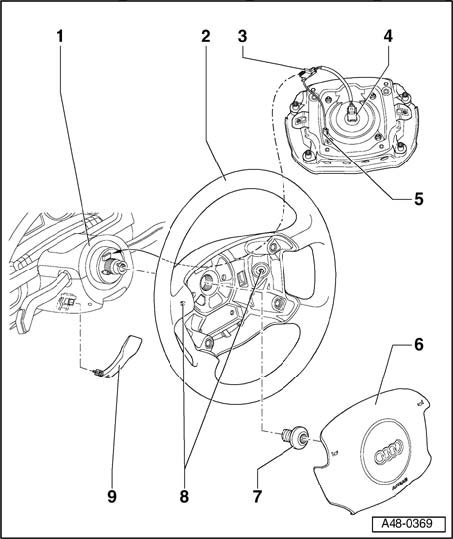

Steering wheel with airbag, assembly overview 1 - Steering column switch trim 2 - Steering wheel ^
Various versions
3 - Spiral spring connector 4 - Airbag unit connector 5 - Signal horn connector 6 - Airbag unit ^
Observe safety precautions
7 - Multi-point socket head screw, 50 Nm ^
Always replace
8 - Screw (see torque)
9 - Steering column adjustment lever
