Stabilizer Bar, Sway Control

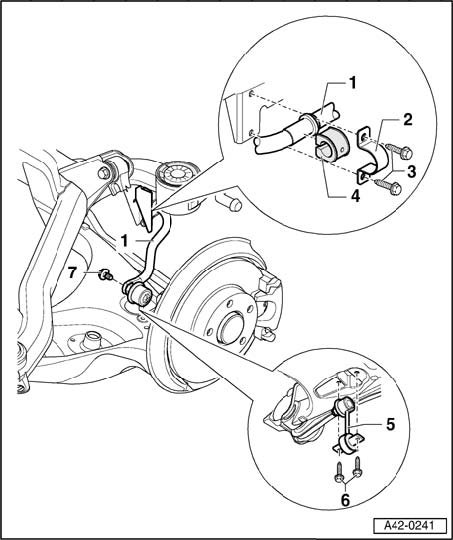

Part VI, Stabilizer bar 1 - Stabilizer bar ^
Be aware of the various
suspension versions, Vehicle data plate.
^
Replace bearing
^
Always replace mounts on both sides of vehicle
2 - Clamp 3 - Collar bolt, 25 Nm 4 - Bushing ^
Always replace mounts on both sides of vehicle
5 - Coupling rod ^
Connects stabilizer with trapezoidal
control arm 6 - Collar bolt, 25 Nm 7 - Collar bolt, 45 Nm
