Dust and Pollen Filter

Dust and Pollen Filter

• Change interval for dust and pollen filter.

• The filter element is available in various versions (with and without an insert of activated charcoal as an integrated odor filter).

• The filter is located under the plenum chamber cover, right.

- Remove the plenum chamber cover.

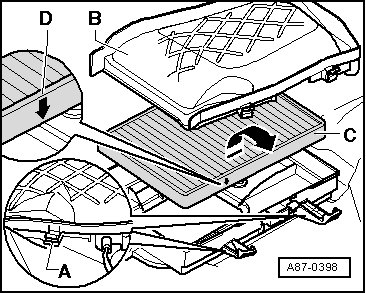

- Unclip cover - B - and remove it to the front.





- Remove dust and pollen filter - C - from housing.

• When inserting the filter in the filter frame, pay attention to the flow direction - arrow D -

• During installation, ensure proper seating of cover - B -. Both catches - A - must engage in order to prevent water from entering the dust and pollen filter and the A/C unit.
