Fresh Air Blower Control Module and Fresh Air Blower






Fresh Air Blower Control Module and Fresh Air Blower

Removing

- Remove glove box.

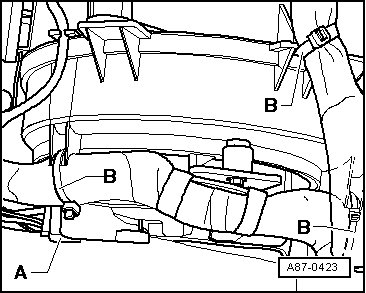

- Disconnect connector - A -.





- Remove the cover "A-pillar" from below.

- Disengage cable ties - B -

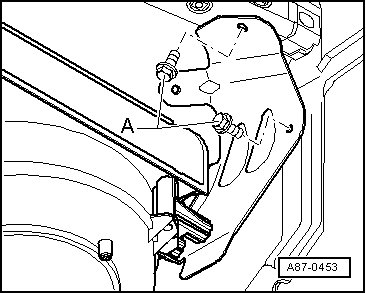

- Remove bolts - A -.





- Pull the A/C unit slightly backward

- Carefully fold the carpet back

- Press the noise insulation mat to the side until rear screw - C - is accessible.





- Remove bolts - C -.

- Press the noise insulation mat to the side and pull fresh air blower (V2) - D - out of the A/C unit.

• The fresh air blower control module (J126) is installed in the fresh air blower (V2) and cannot be replaced separately.

• When installing, ensure that the fresh air blower ( V2) is seated correctly in the A/C unit.

Installing

Install in reverse order of removal.
