Right Footwell Vent Temperature Sensor






Right Footwell Vent Temperature Sensor

- Remove the Climatronic control module (J255) A/C control head.

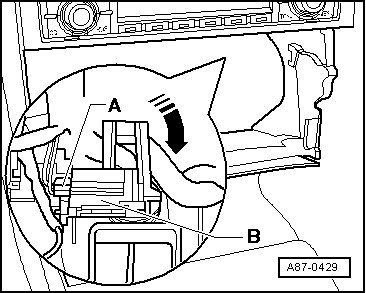

- Reach through the opening for the Climatronic control module (J255) A/C control head and disconnect connector - A -.





- Rotate the right footwell vent temperature sensor (G262) - B - approximately 90° in the direction of the - arrow -.

- Pull the right footwell vent temperature sensor ( G262) out of the A/C unit.

• Observe the arrangement of the connectors with respect to the sensors (left footwell vent temperature sensor (G261) and right footwell vent temperature sensor (G262) to prevent mix-ups).
