List of Selectable Display Groups

List of Selectable Display Groups - 01J, Continuously Variable Transmission (CVT)

Note:
The legend for the values in the individual display fields can be found under "Test Chart for Measured Value Blocks".

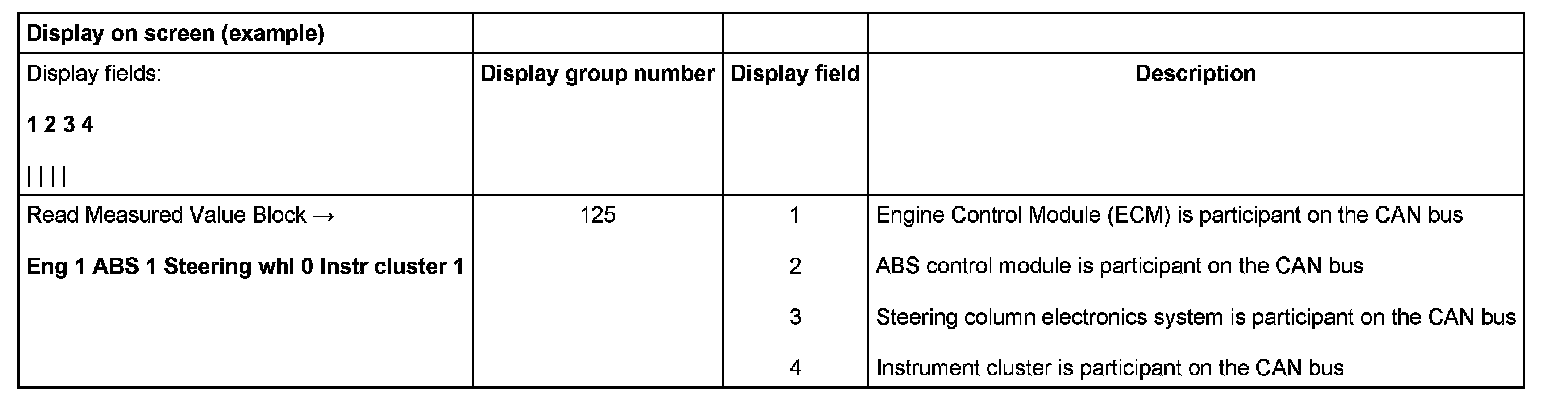

List of Selectable Display Groups (Part 1):

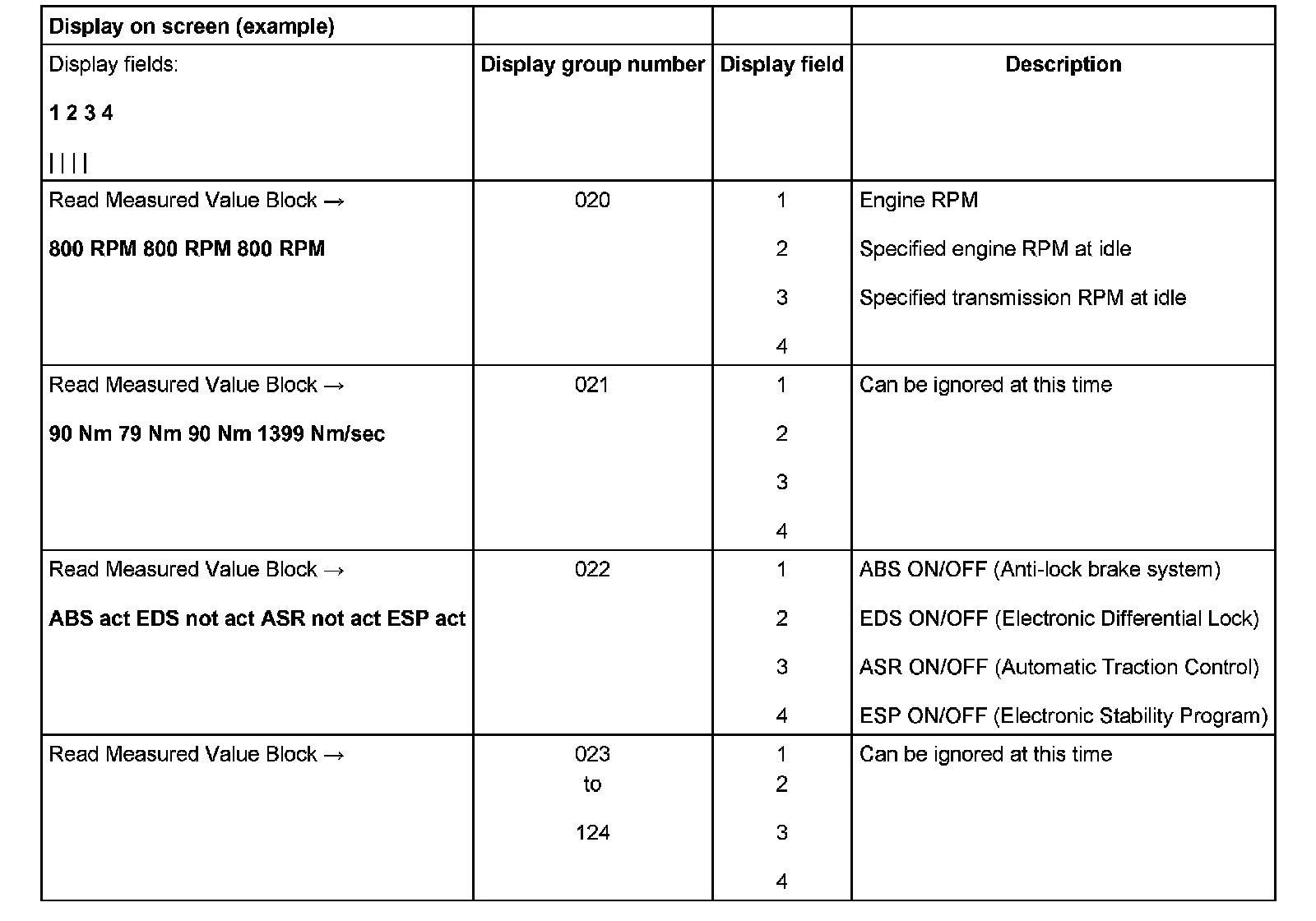

List of Selectable Display Groups (Part 2):

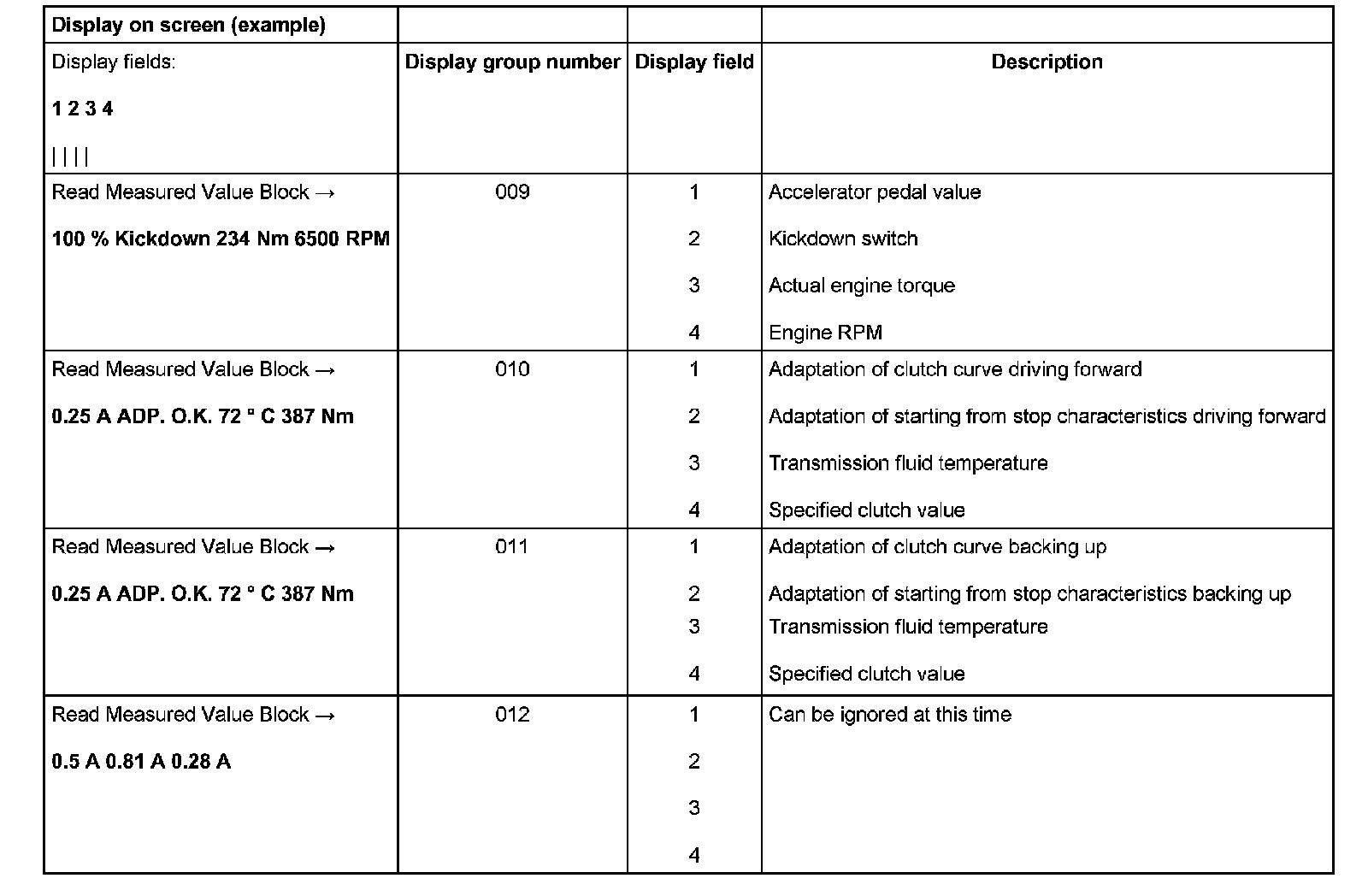

List of Selectable Display Groups (Part 3):

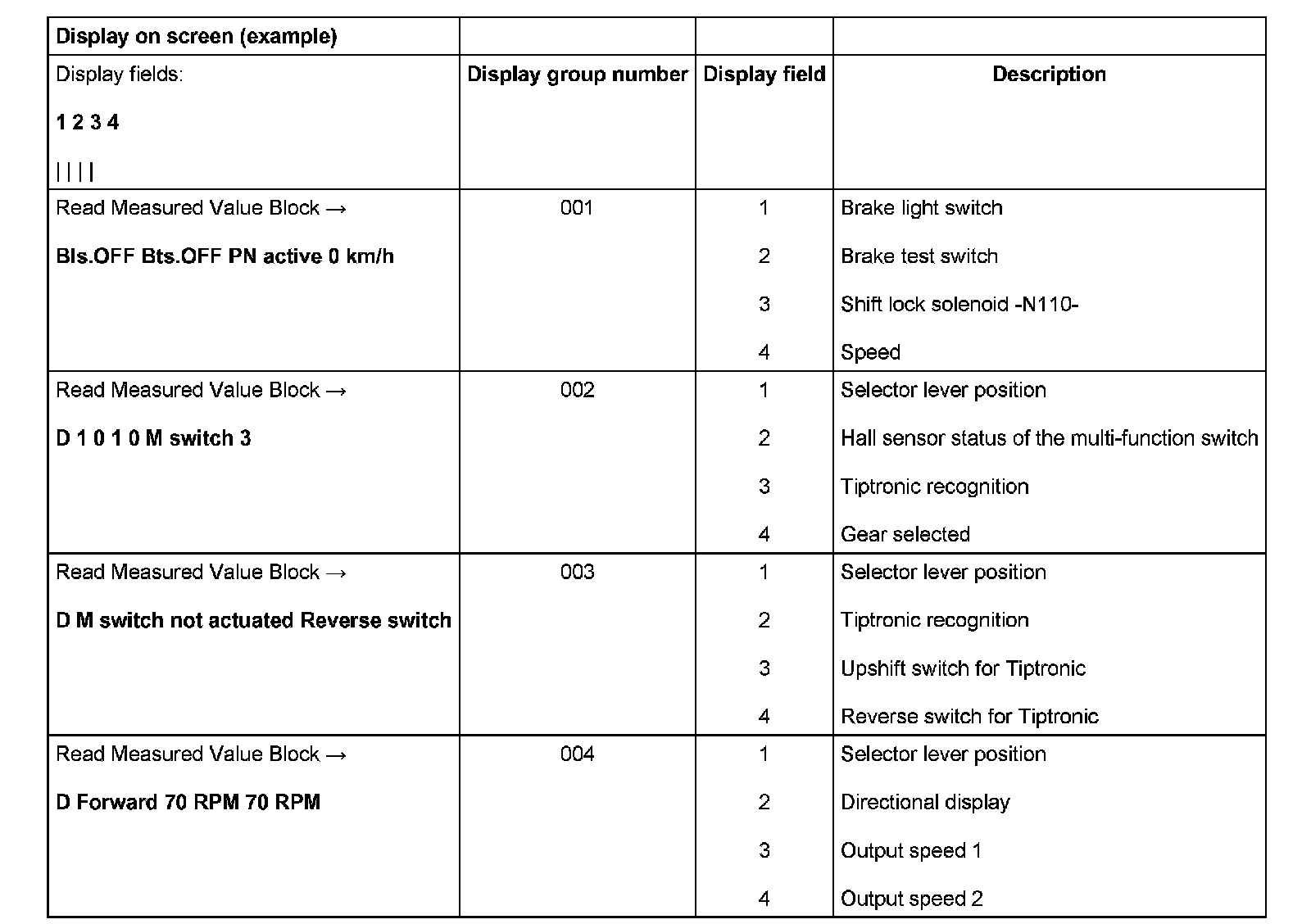

List of Selectable Display Groups (Part 4):

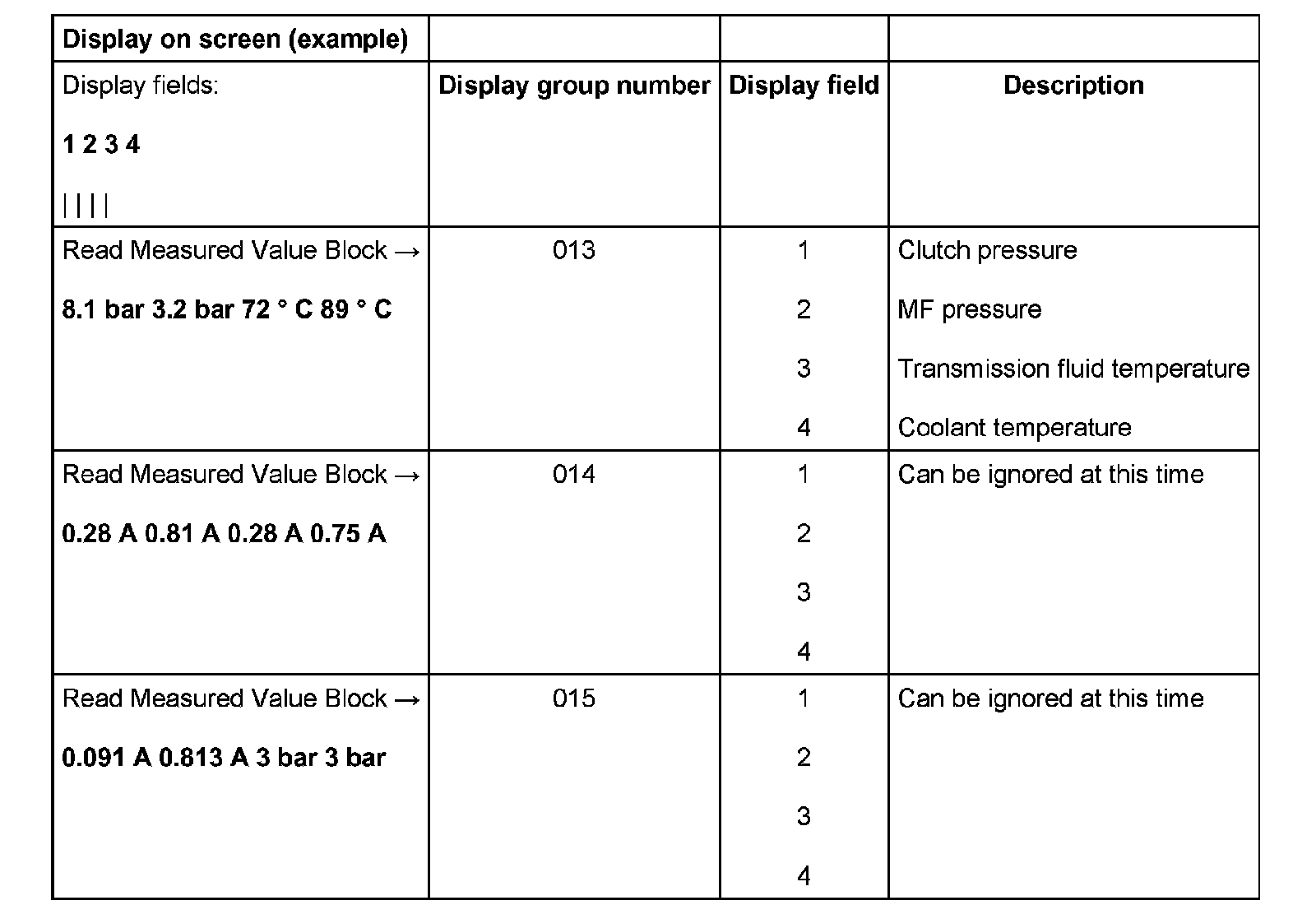

List of Selectable Display Groups (Part 5):

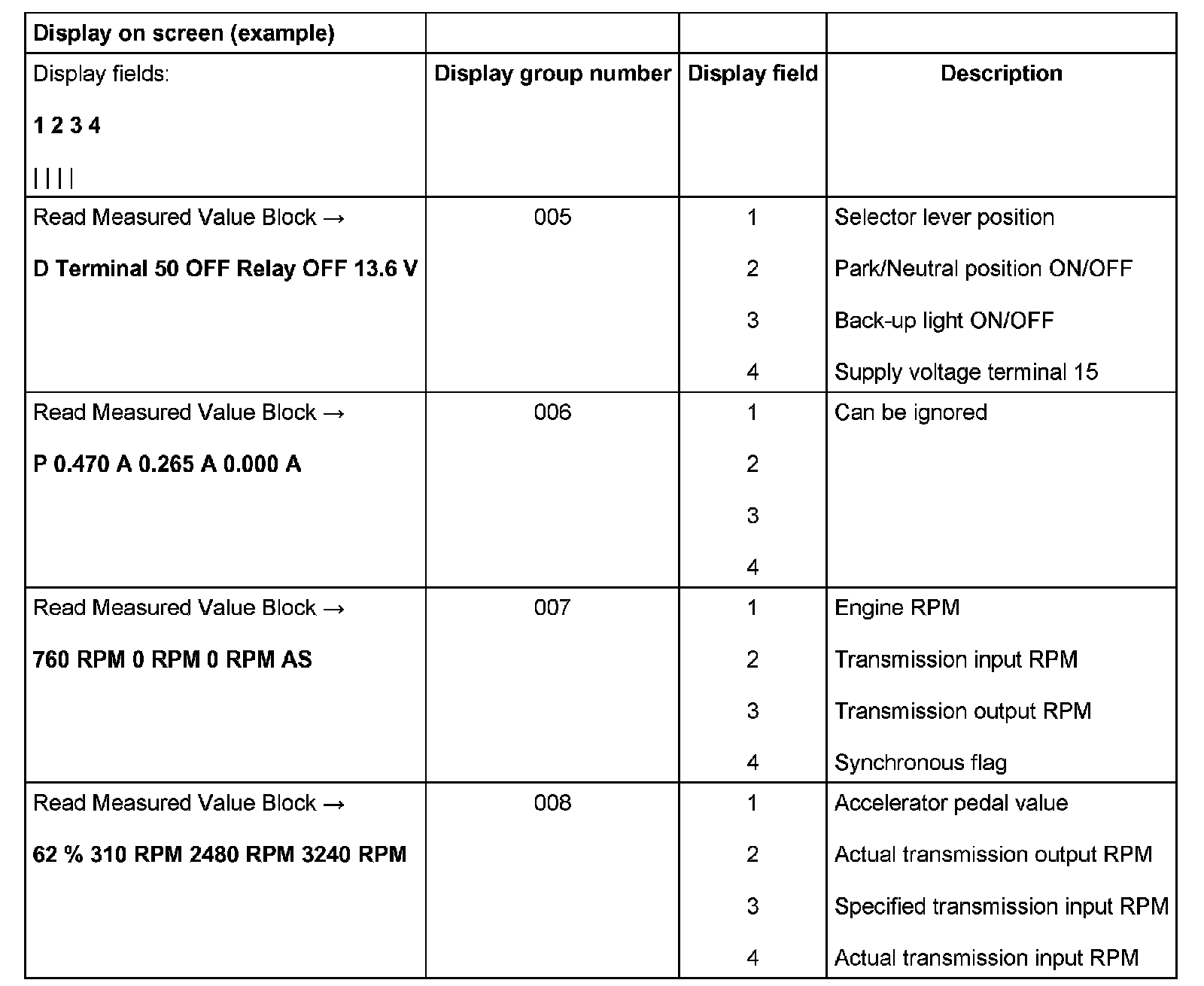

List of Selectable Display Groups (Part 6):

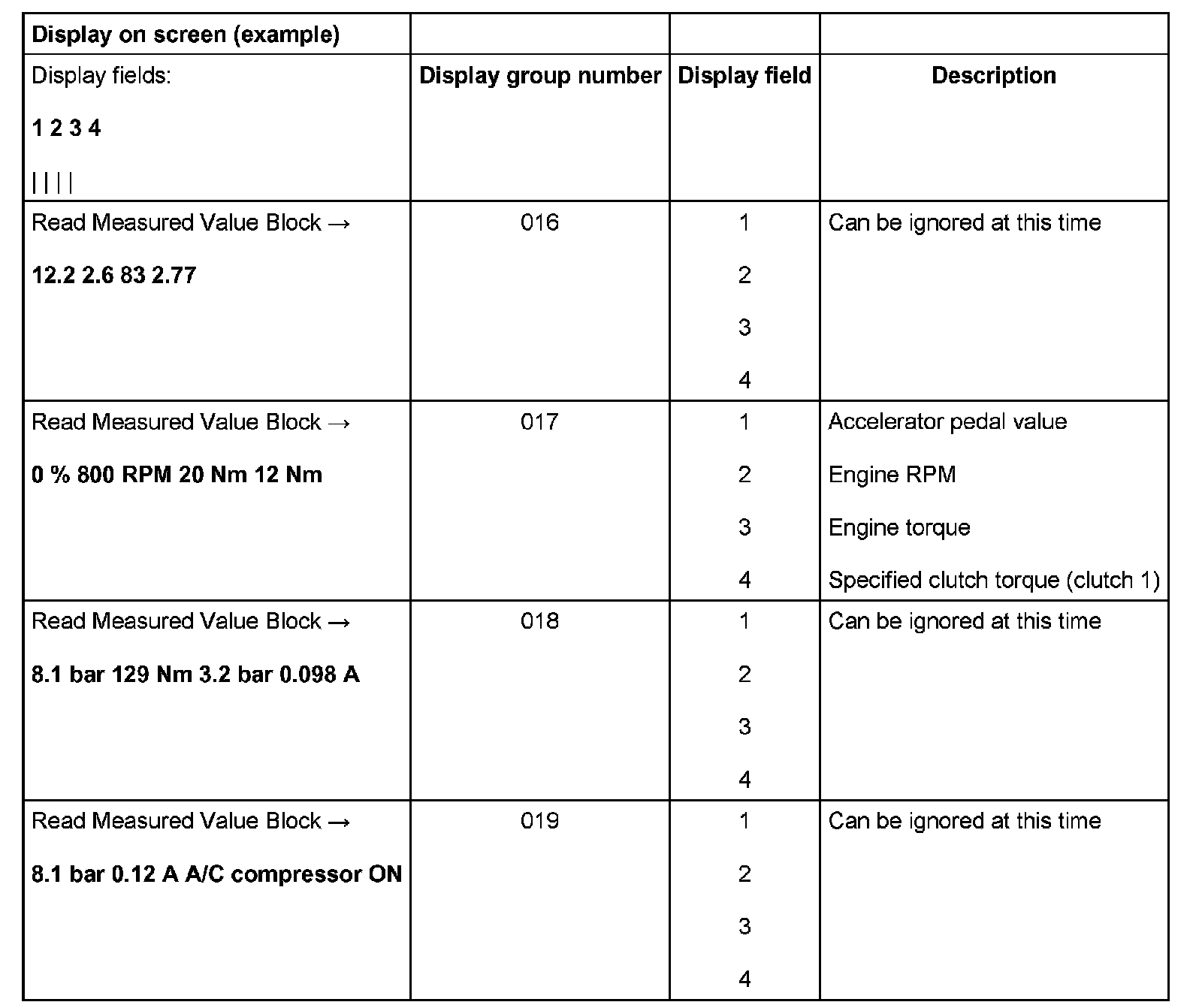

List of Selectable Display Groups (Part 7):
