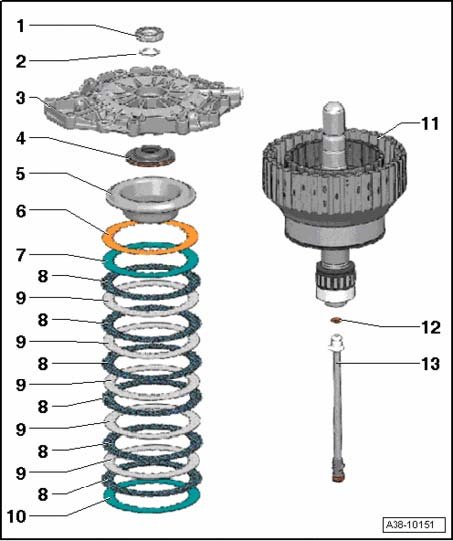

Input Shaft With 6 Lining Discs Assembly Overview
Input Shaft with 6 Lining Discs Assembly Overview - 01J, Continuously Variable Transmission (CVT)
CAUTION!
Note the difference between input shafts with 6 and 7 lining discs.
1 - Input shaft seal
^ Replace
2 - Input shaft cover circlip
^ Replace with same thickness
3 - Input shaft cover
^ After removing the cover, the input shaft cover bearing "A" (transmission input shaft ball bearing) must be replaced
4 - Piston
^ Check for wear
5 - Pressure plate
^ Check for wear
6 - Corrugated spring washer
7 - Upper adjustment disc
^ Determine thickness
^ Replace
8 - Lining disc
^ Quantity: 6
^ Replace
9 - Outer disc
^ Quantity: 5
^ Replace
10 - Lower adjustment disc
^ Determine thickness
^ Replace
11 - Input shaft cylinder
^ Check for wear
12 - O-Ring
^ Replace
13 - Oil pipe
^ Check for wear
