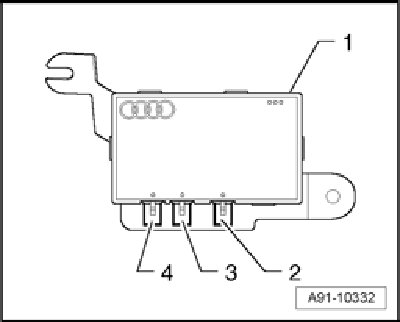

Right Antenna Module, Connections
Right Antenna Module, Avant, ConnectionsConnectors 1
-
Connection for window antennas
-
1 - FM3/TV3
-
2 - TV4
2
-
FM3 connection (black) to Left Antenna Module R108
3
-
TV3 connection (green) to Navigation/TV Tuner J415
4
-
TV4 connection (brown) to Navigation/TV Tuner J415
