Left Antenna Module, Radio Generation II+

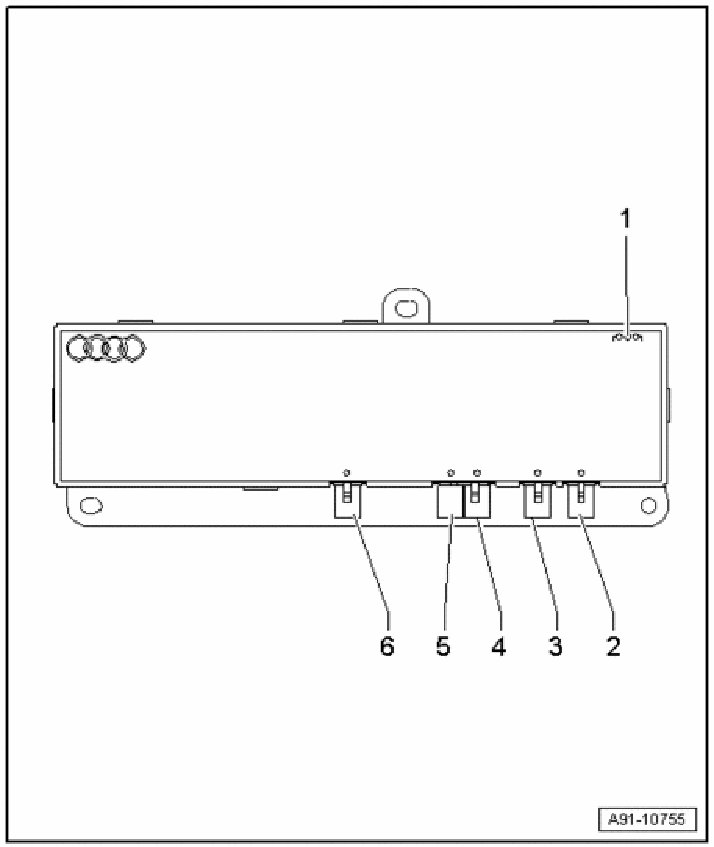

Left Antenna Module, Radio Generation II+, Avant 1
-
Left window antennas connection
-
1CLS
-
2FM1/TS
-
3AM
2
-
CLS connection (gray) to Comfort System
Central Control Module J393
3
-
TS connection (yellow) to Auxiliary Heater Radio Receiver R64
4
-
AM/FM1 connection (yellow) to Radio R
5
-
FM2 connection (yellow) to Radio R
6
-
FM2 connection (brown) from rear window antennas
