Diagram 69/21 (Tracks 267-280)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

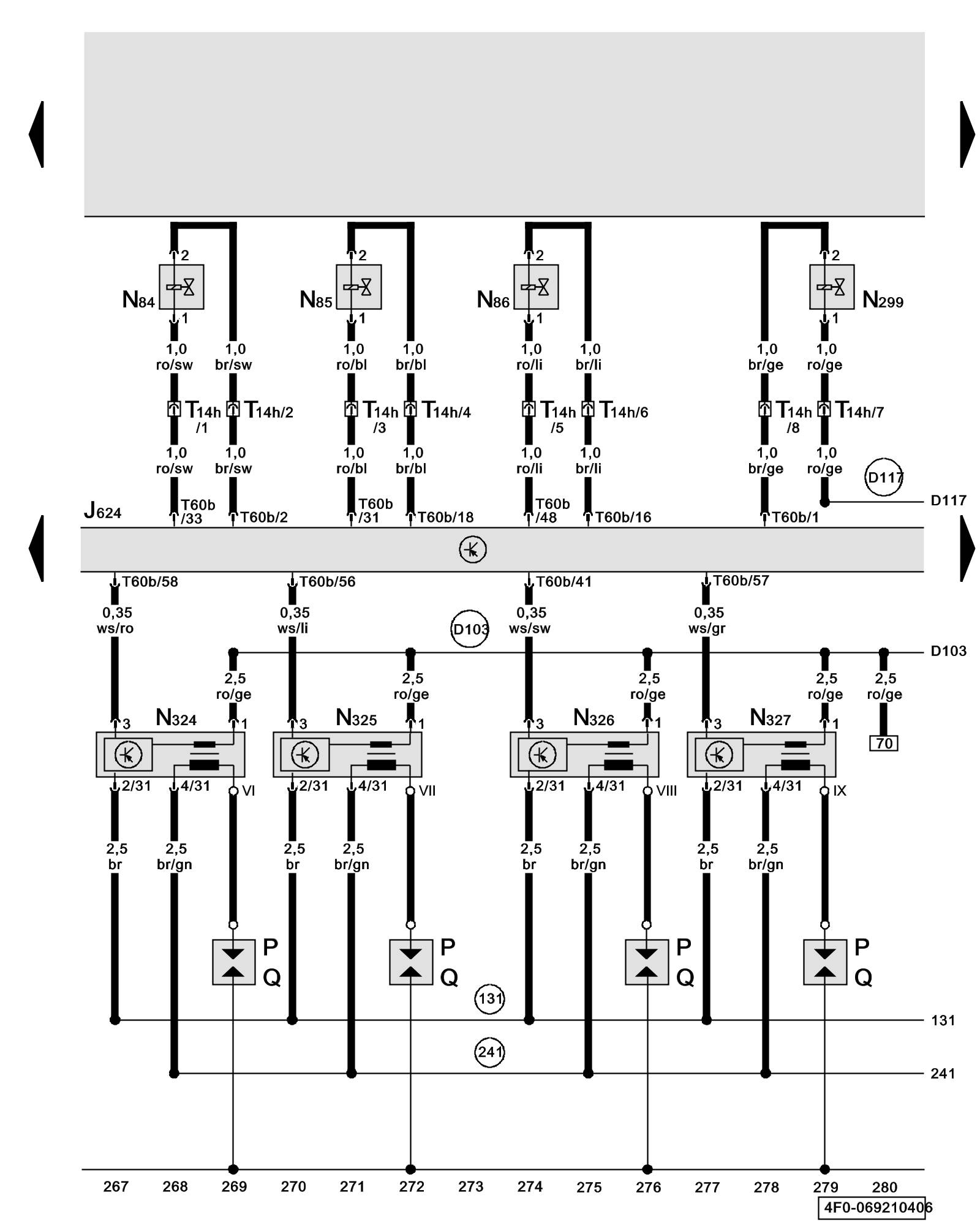

Engine Control Module (ECM) 2, Cylinder 6 through 9 Fuel Injectors, Ignition Coils 6 through 9 with Power Output Stage





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J624 - Engine Control Module (ECM) 2 5.2L BXA Overviews

N84 - Cylinder 6 Fuel Injector 5.2L BXA Overviews

N85 - Cylinder 7 Fuel Injector 5.2L BXA Overviews

N86 - Cylinder 8 Fuel Injector 5.2L BXA Overviews

N299 - Cylinder 9 Fuel Injector 5.2L BXA Overviews

N324 - Ignition Coil 6 with Power Output Stage 5.2L BXA Overviews

N325 - Ignition Coil 7 with Power Output Stage 5.2L BXA Overviews

N326 - Ignition Coil 8 with Power Output Stage 5.2L BXA Overviews

N327 - Ignition Coil 9 with Power Output Stage 5.2L BXA Overviews

P - Spark Plug Connectors

Q - Spark Plugs

T14h - 14-Pin Connector, brown, in left engine compartment

T60b - 60-Pin Connector, black (Connector A), on engine control module (ECM) 2

(131) - Ground Connection 2 (in engine compartment wiring harness)

(241) - Engine Ground Connection 2 (in engine wiring harness)

(D103) - Connection 3 (in engine compartment wiring harness)

(D117) - Connection 15 (in engine compartment wiring harness)

Previous Diagram 69/20 (Tracks 253-266)

Next Diagram 69/22 (Tracks 281-294)
