Instruments - Outside Temp. Display Updates Too Slowly

90 Outside temperature display updates too slowly

90 10 02

2022938/1

March 24, 2010





Affected Vehicles

Condition

^ The outside temperature display indicates rising outside temperatures very slowly.

^ When driving in town, the correct temperature is shown only after a very long journey.

^ Instrument clusters with software version 0860 (A3) and 0360 (TT) are affected.

Technical Background

Incorrect software.

Production Solution

New software in the instrument cluster (J285) addressed the condition.

Service

1. Follow all instructions in the attached TSB 2011732 00 Software Version Management (SVM), operating instructions.

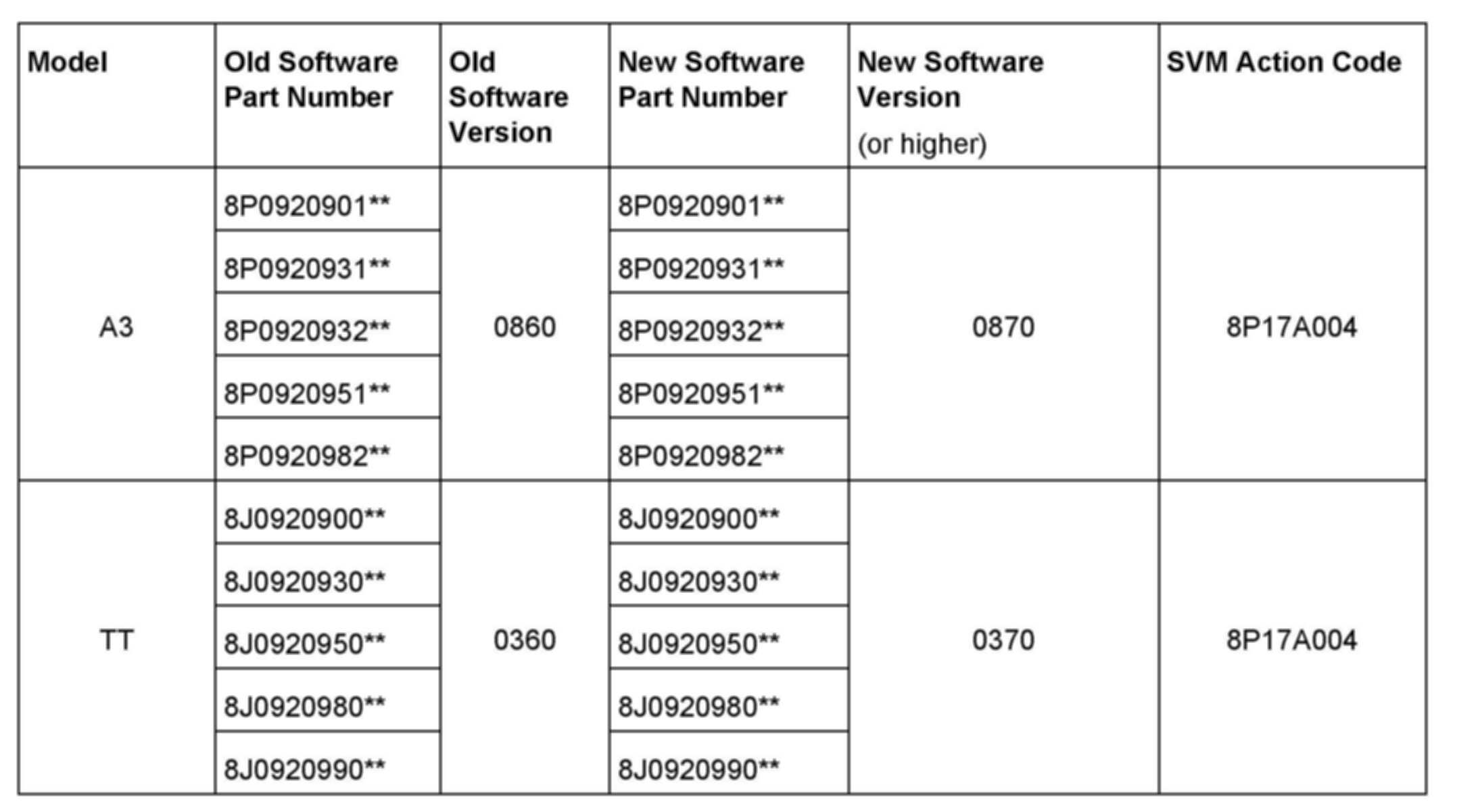

2. Update the instrument cluster (J285) using the SVM action code as listed in the table above if necessary.

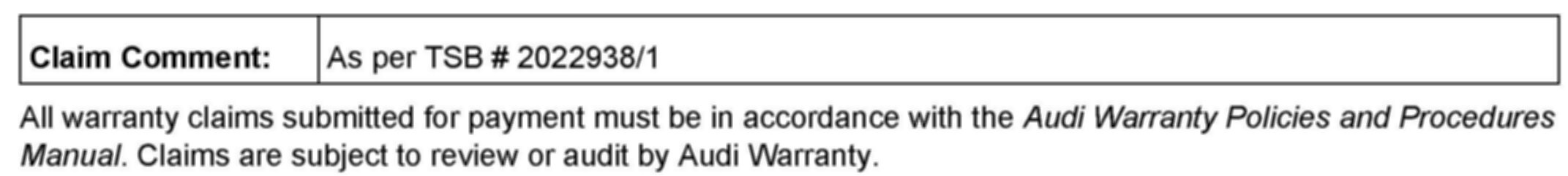

Warranty

Additional Information

The following Technical Service Bulletin will be necessary to complete this procedure:

^ TSB 2011732 00 Software Version Management (SVM), operating instructions.

All part and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Dept. and service manuals for the latest information.


























Attachment - 00 Software version Management (SVM), Operating Instructions
