Seat Belt Systems: Service and Repair

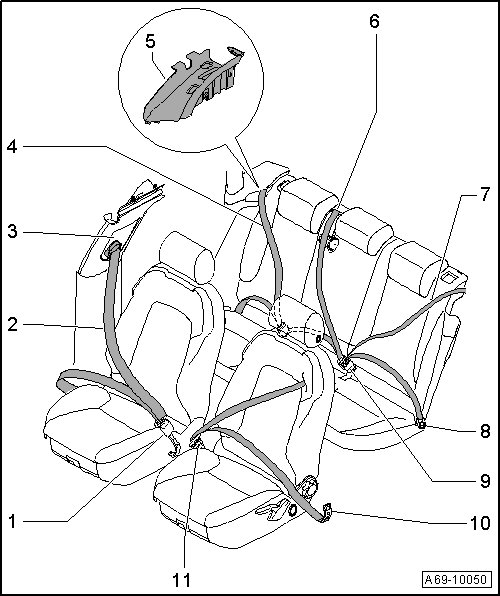

Seat Belts Component Overview






1 Right Seat Belt Latch Anchorage Point

• Removing and Installing, refer to => [ Seat Belt Latch Anchorage Point ] Seat Belt Latch Anchorage Point

• Removing and Installing, refer to => [ Seat Occupied Recognition Passenger Airbag Deactivation Seat Belt Latch ] Seat Occupied Recognition Passenger Airbag Deactivation Seat Belt Latch

2 Front Three-Point Seat Belt

• Removing and Installing, refer to => [ Front Three-Point Seat Belt ] Front Three-Point Seat Belt

3 Seat Belt Height Adjuster

• Removing and Installing, refer to => [ Seat Belt Height Adjuster ] Seat Belt Height Adjuster

4 Right Rear Three-Point Seat Belt

• Removing and Installing, refer to => [ Rear Three-Point Seat Belt ] Rear Three-Point Seat Belt

5 Belt Guide

• Removing and Installing, refer to => [ Belt Guide ] Belt Guide

6 Third Rear Three-Point Seat Belt

• Removing and Installing, refer to => [ Third Rear Three-Point Seat Belt ] Third Rear Three-Point Seat Belt

7 Left Rear Three-Point Seat Belt

• Removing and Installing, refer to => [ Rear Three-Point Seat Belt ] Rear Three-Point Seat Belt

8 Rear Outside Floor Assembly Anchorage Point

• Removing and Installing, refer to => [ Outer Rear Floor Assembly Anchorage Point ] Outer Rear Floor Assembly Anchorage Point

9 Center Rear Floor Assembly Anchorage Points

• Removing and Installing, refer to => [ Rear Center Floor Assembly Mounting Point ] Rear Center Floor Assembly Mounting Point

10 Outside Floor Assembly Anchorage Point

• Removing and Installing, refer to => [ Outside Floor Assembly Anchorage Point ] Outside Floor Assembly Anchorage Point

11 Left Seat Belt Latch Anchorage Point

• Removing and Installing, refer to => [ Seat Belt Latch Anchorage Point ] Seat Belt Latch Anchorage Point
