Front Subframe Mount: Service and Repair

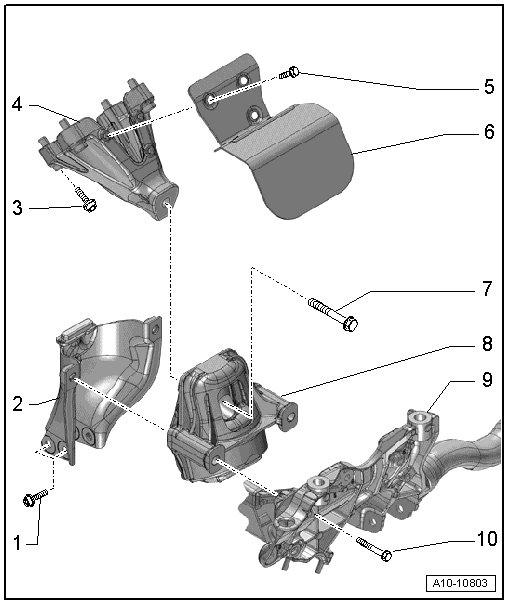

Subframe Mount Assembly Overview

1 Bolt

• 20 Nm

2 Mounting plate

• For engine mount

• Replace when replacing the engine mount

3 Bolt

• 40 Nm

4 Engine support

5 Bolt

• 10 Nm

6 Heat shield

7 Bolt

• Replace

• 90 Nm plus an additional 90° turn

8 Engine mount

• Removing and installing: Left => [ Left Engine Mount ] Left Engine Mount, right => [ Right Engine Mount ] Right Engine Mount

• Replace in pairs on the left and right

9 Subframe

10 Bolt

• 55 Nm
