Intake Manifold

Intake Manifold Upper Section:

Bolt 8 Nm

Intake Manifold Lower Section:

Bolt 9 Nm
Nut 9 Nm

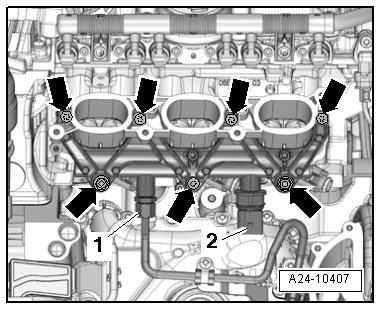

- Tighten the bolts and nut - arrows - on the lower section of the intake manifold diagonally in stages.
