Fastener Tightening Specifications






Fastener Tightening Specifications






Manual Transmission

Ground bolt to strut tower - tightening specification





- Tighten ground bolt - 1 - to 9 Nm.

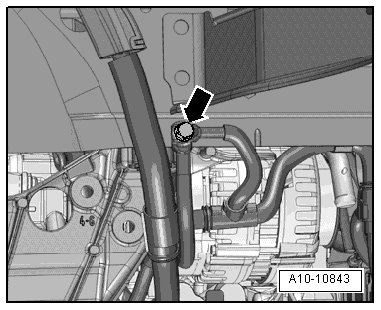

Tightening specification for Ground (GND) cables to the longitudinal member





- Tighten the nut - arrow - to 9 Nm.

Engine to manual transmission










Multitronic transmission 0AW





Ground bolt to strut tower - tightening specification





- Tighten the ground bolt - 1 - to 9 Nm.





Tightening specification for ground wires to the longitudinal member





- Tighten the nut - arrow - to 9 Nm.

Engine to multitronic transmission 0AW










Automatic Transmission 0B6

Ground bolt to strut tower - tightening specification





- Tighten the ground bolt - 1 - to 9 Nm.

Tightening specification for ground wires to the longitudinal member





- Tighten the nut - arrow - to 9 Nm.

Engine to automatic transmission 0B6
