Part 2






Diagnostic Mode 06 - Read Test Results for Specific Diagnostic Functions

- Check specified values at idle.





- If any component or system fails to meet the specified values, refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory to check for stored DTC's or the corresponding diagnostic repair procedure.

- Switch the ignition off.

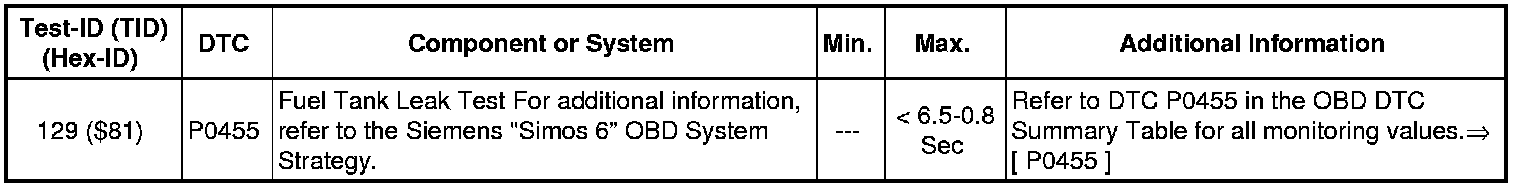

Test-ID 58 ($3A) ): "Fuel Tank EVAP System Leak Test (0.090).

- Connect the scan tool.

- Start the engine and let run at idle speed.

- Select "Diagnostic Mode 06 - Checking test results of components that are not continuously monitored".

Select "Test-ID 03 ($03)".

- Select the desired "Test-ID".

- Check specified values at idle.





- If any component or system fails to meet the specified values, refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory to check for stored DTC's or the corresponding diagnostic repair procedure.

- Switch the ignition off.

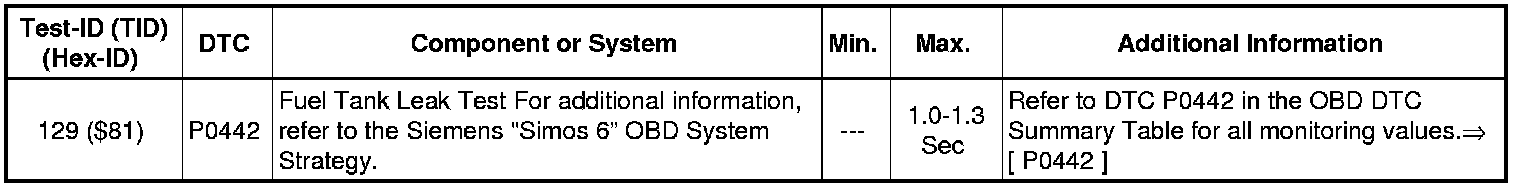

Test-ID 59 ($3B) ): "Fuel Tank EVAP System Leak Test (0.040).

- Connect the scan tool.

- Start the engine and let run at idle speed.

- Select "Diagnostic Mode 06 - Checking test results of components that are not continuously monitored".

Select "Test-ID 59 ($3B)".

- Select the desired "Test-ID".

- Check specified values at idle.





- If any component or system fails to meet the specified values, refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory to check for stored DTC's or the corresponding diagnostic repair procedure.

- Switch the ignition off.

"Test-ID 60 ($3C) : Fuel Tank EVAP System Leak Test (0.020/0.5mm).

- Connect the scan tool.

- Start the engine and let run at idle speed.

- Select "Diagnostic Mode 06 - Checking test results of components that are not continuously monitored".

Select "Test-ID 60 ($3C)".

- Select the desired "Test-ID".

- Check specified values at idle.





- If any component or system fails to meet the specified values, refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory to check for stored DTC's or the corresponding diagnostic repair procedure.

- Switch the ignition off.

Test-ID 61 ($3D): Tank Vent Valve - Function Check.

- Connect the scan tool.

- Start the engine and let run at idle speed.

- Select "Diagnostic Mode 06 - Checking test results of components that are not continuously monitored".

Select "Test-ID 61 ($3D)".

- Select the desired "Test-ID".

- Check specified values at idle.





- If any component or system fails to meet the specified values, refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory to check for stored DTC's or the corresponding diagnostic repair procedure.

- Switch the ignition off.

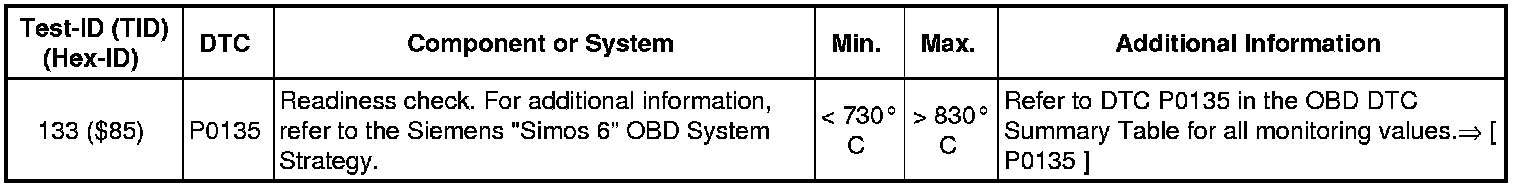

65 ($41): Oxygen Sensor Heating in front of Catalytic Converter (Bank 1 - Sensor 1).

- Connect the scan tool.

- Start the engine and let run at idle speed.

- Select "Diagnostic Mode 06 - Checking test results of components that are not continuously monitored".

Select "Test-ID 65 ($41)".

- Select the desired "Test-ID".

- Check specified values at idle.





- If any component or system fails to meet the specified values, refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory to check for stored DTC's or the corresponding diagnostic repair procedure.

- Switch the ignition off.

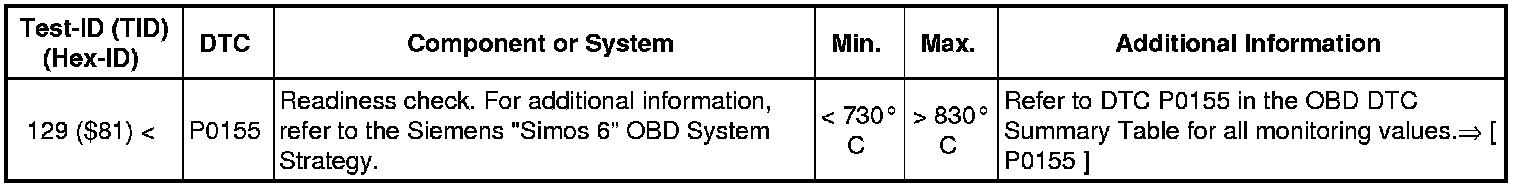

69 ($45): Oxygen Sensor Heating in front of Catalytic Converter (Bank 2 - Sensor 1)

- Connect the scan tool.

- Start the engine and let run at idle speed.

- Select "Diagnostic Mode 06 - Checking test results of components that are not continuously monitored".

Select "Test-ID 69 ($45)".

- Select the desired "Test-ID".

- Check specified values at idle.





- If any component or system fails to meet the specified values, refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory to check for stored DTC's or the corresponding diagnostic repair procedure.

- Switch the ignition off.

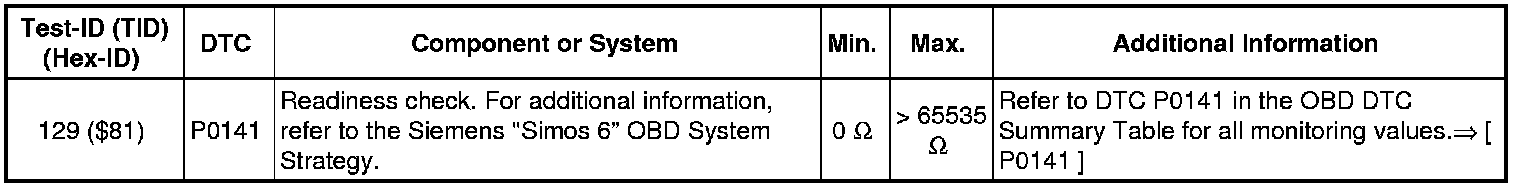

66 ($42): Oxygen Sensor Monitoring Behind Catalytic Converter (Bank 1 - Sensor 2)

- Connect the scan tool.

- Start the engine and let run at idle speed.

- Select "Diagnostic Mode 06 - Checking test results of components that are not continuously monitored".

Select "Test-ID 66 ($42) ".

- Select the desired "Test-ID".

- Check specified values at idle.





- If any component or system fails to meet the specified values, refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory to check for stored DTC's or the corresponding diagnostic repair procedure.

- Switch the ignition off.

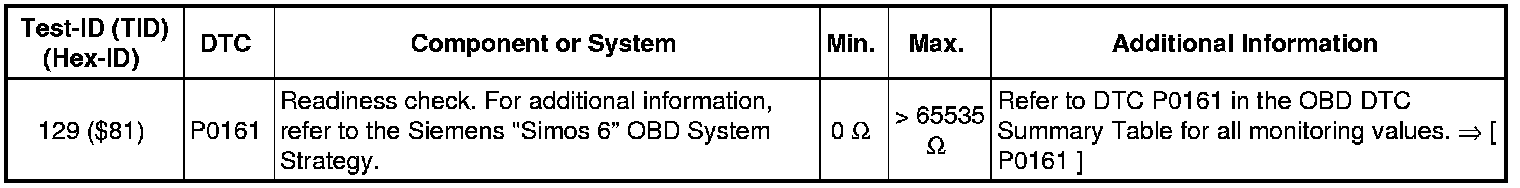

70 ($46): Oxygen Sensor Monitoring Behind Catalytic Converter (Bank 2 - Sensor 2)

- Connect the scan tool.

- Start the engine and let run at idle speed.

- Select "Diagnostic Mode 06 - Checking test results of components that are not continuously monitored".

Select "Test-ID 66 ($42) ".

- Select the desired "Test-ID".

- Check specified values at idle.





- If any component or system fails to meet the specified values, refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory to check for stored DTC's or the corresponding diagnostic repair procedure.

- Switch the ignition off.

162 ($A2):Combustion Misfire Cylinder 1 Data

- Connect the scan tool.

- Start the engine and let run at idle speed.

- Select "Diagnostic Mode 06 - Checking test results of components that are not continuously monitored".

Select "Test-ID 162 ($A2): ".

- Select the desired "Test-ID".

- Check specified values at idle.





- If any component or system fails to meet the specified values, refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory to check for stored DTC's or the corresponding diagnostic repair procedure.

- Switch the ignition off.

163 ($A3):Combustion Misfire Cylinder 2 Data

- Connect the scan tool.

- Start the engine and let run at idle speed.

- Select "Diagnostic Mode 06 - Checking test results of components that are not continuously monitored".

Select "Test-ID 163 ($A3) ".

- Select the desired "Test-ID".

- Check specified values at idle.





- If any component or system fails to meet the specified values, refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory to check for stored DTC's or the corresponding diagnostic repair procedure.

- Switch the ignition off.

164 ($A4):Combustion Misfire Cylinder 3 Data

- Connect the scan tool.

- Start the engine and let run at idle speed.

- Select "Diagnostic Mode 06 - Checking test results of components that are not continuously monitored".

Select "Test-ID 164 ($A4): ".

- Select the desired "Test-ID".

- Check specified values at idle.





- If any component or system fails to meet the specified values, refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory to check for stored DTC's or the corresponding diagnostic repair procedure.

- Switch the ignition off.

165 ($A5):Combustion Misfire Cylinder 4 Data

- Connect the scan tool.

- Start the engine and let run at idle speed.

- Select "Diagnostic Mode 06 - Checking test results of components that are not continuously monitored".

Select "Test-ID 165 ($A5): ".

- Select the desired "Test-ID".

- Check specified values at idle.





- If any component or system fails to meet the specified values, refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory to check for stored DTC's or the corresponding diagnostic repair procedure.

- Switch the ignition off.

166 ($A6):Combustion Misfire Cylinder 5 Data

- Connect the scan tool.

- Start the engine and let run at idle speed.

- Select "Diagnostic Mode 06 - Checking test results of components that are not continuously monitored".

Select "Test-ID 166 ($A6): ".

- Select the desired "Test-ID".

- Check specified values at idle.





- If any component or system fails to meet the specified values, refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory to check for stored DTC's or the corresponding diagnostic repair procedure.

- Switch the ignition off.

167 ($A7):Combustion Misfire Cylinder 6 Data

- Connect the scan tool.

- Start the engine and let run at idle speed.

- Select "Diagnostic Mode 06 - Checking test results of components that are not continuously monitored".

Select "Test-ID 167 ($A7): ".

- Select the desired "Test-ID".

- Check specified values at idle.





- If any component or system fails to meet the specified values, refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory to check for stored DTC's or the corresponding diagnostic repair procedure.

- Switch the ignition off.

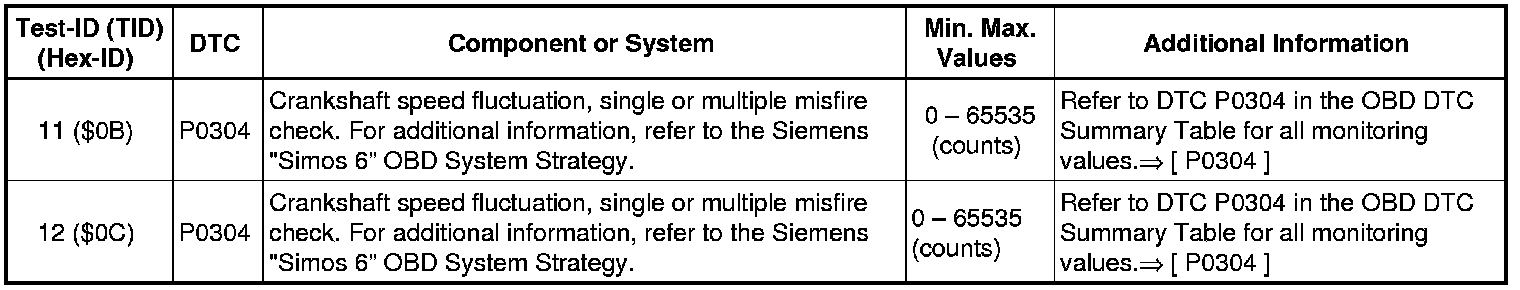

Test-ID (TID) 11: Misfire, Averaging over 10 Drive Cycles

This value is calculated once per drive cycle (after ignition).

Test-ID (TID) 12: Misfire, in this Drive Cycle

This value is updated during the drive. During next ignition the engine misfires from the last drive cycle will be displayed. The TID 12 counter will not be reset until the engine is started.
