Heated Windshield Control Module -J505-, Parking Brake Control Module -J540- Towing Recognition Control Module -J345-







Component Locations Control Modules

Heated Windshield Control Module -J505-, Electro-Mechanical Parking Brake Control Module -J540- and Towing Recognition Control Module -J345-

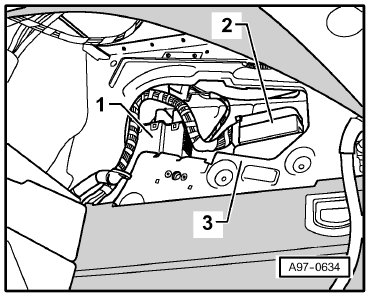

Component Location:







below Battery
1 - Heated Windshield Control Module -J505-
2 - Electro-Mechanical Parking Brake Control Module -J540-
3 - Towing Recognition Control Module -J345-

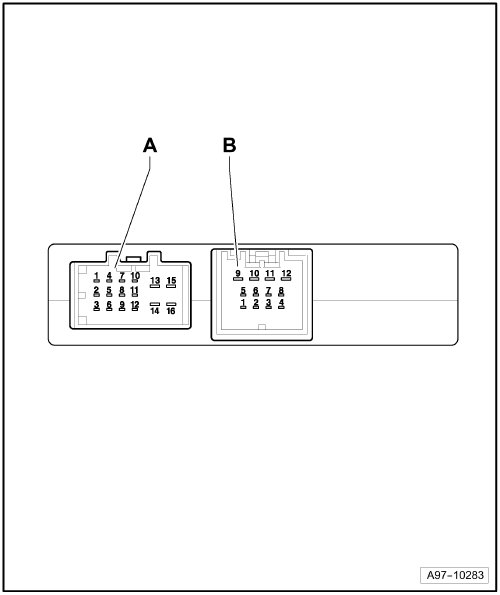

Towing Recognition Control Module -J345-:







A - 16-Pin Connector, T16f, black

B - 12-Pin Connector, T12m, red

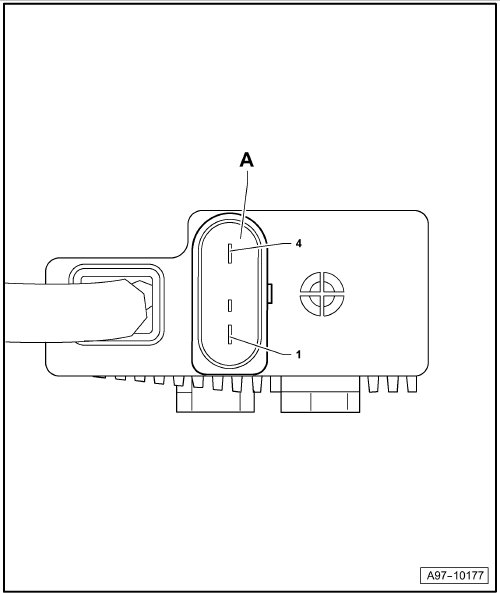

Heated Windshield Control Module -J505-:







A - 4-Pin Connector, black

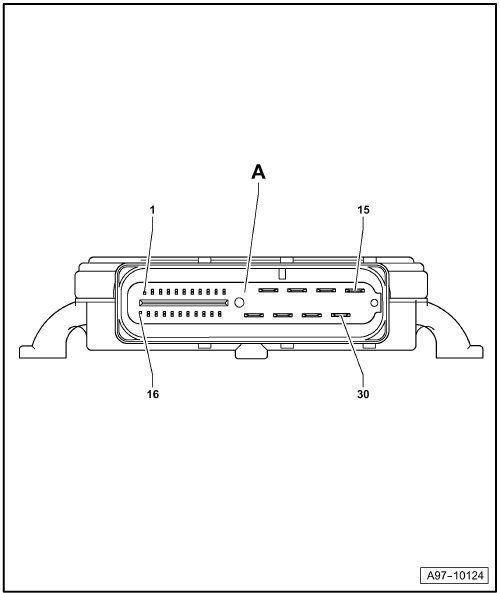

Electro-Mechanical Parking Brake Control Module -J540-:







A - 30-Pin Connector, black
