Steering Column Electronic Systems Control Module

Steering Column Switch Module

Steering Column Electronic Systems Control Module

Removing

- If the control module was replaced, select the "Replace" function for the respective control module in "Guided Fault Finding" or "Guided Functions" with the Vehicle diagnosis, testing and information system (VAS 5051B).

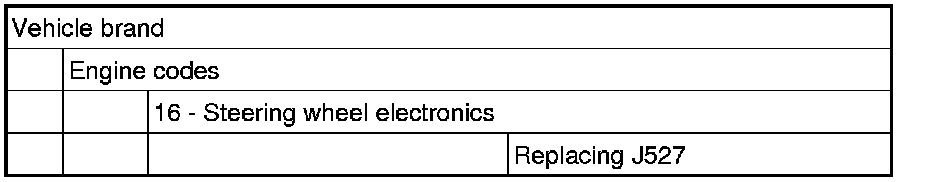

- Select the function or path:






- Follow the instructions on the (VAS 5051B) display.

- Remove the steering column switch module. Refer to => [ Steering Column Switch Module ]. Steering Column Switch Module





• Steering must be in center position (wheels in straight ahead position) when removing and installing coil connector with slip ring.

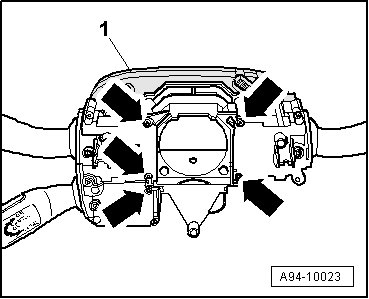

- Carefully release catches - arrows -.

- Pull return spring with slip ring - 2 - with steering angle sensor (G85) - item 1 - off from steering column switch module (SCSM).

- Remove screws - arrows -.





- Remove steering column electronic systems control module (J527) - item 1 - from steering column switch module.

Installing

Install in reverse order of removal, observing the following:

- Make sure all fasteners and electrical connectors are properly engaged.

- Install the steering column switch module. Refer to => [ Steering Column Switch Module ]. Steering Column Switch Module

If steering column electronic systems control module was replaced, it must be coded with the (VAS 5051B).

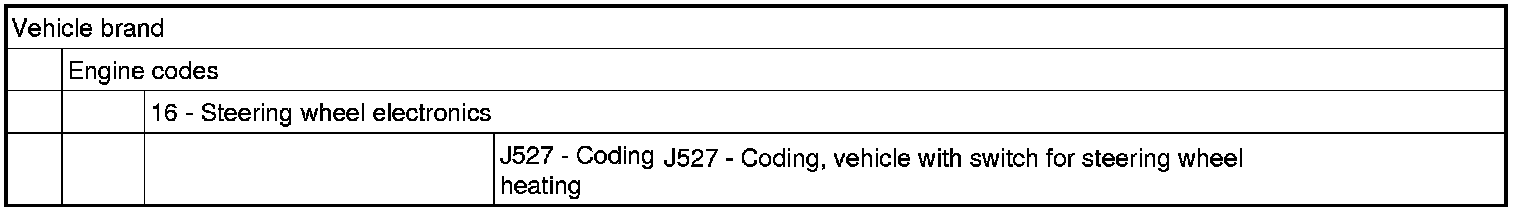

- Select the function or path:






- Follow the instructions on the (VAS 5051B) display.

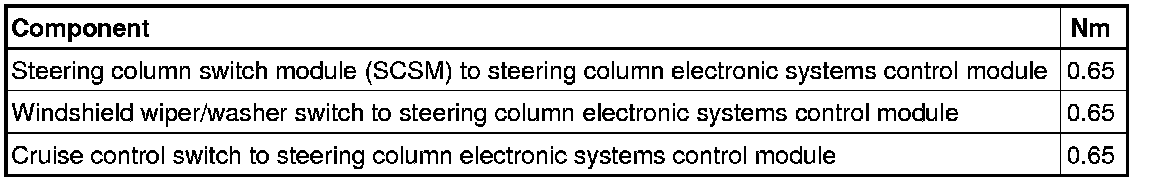

Tightening Specifications
