Turn Signal Switch

Steering Column Switch Module

Turn Signal Switch

Removing





- Remove the steering column switch module. Refer to => [ Steering Column Switch Module ]. Steering Column Switch Module

• Steering must be in center position (wheels in straight ahead position) when removing and installing coil connector with slip ring.

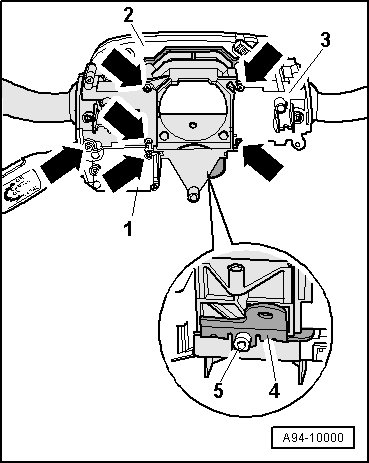

- Carefully release catches - arrows -.

- Pull return spring with slip ring - 2 - with steering angle sensor (G85) - item 1 - off from steering column switch module (SCSM).

- Remove screws - arrows -.





- Pull steering column electronic systems control module (J527) - item 2 - and windshield wiper/washer switch (E22) - item 3 - off from steering column switch module (SCSM).

- Disengage cruise control switch (E45) - item 1 - from steering column switch module (SCSM).

- Remove bolt - 5 - and remove retaining bracket - 4 -.

Installing

Install in reverse order of removal, observing the following:

- Make sure all fasteners and electrical connectors are properly engaged.

- Install the steering column switch module. Refer to => [ Steering Column Switch Module ]. Steering Column Switch Module

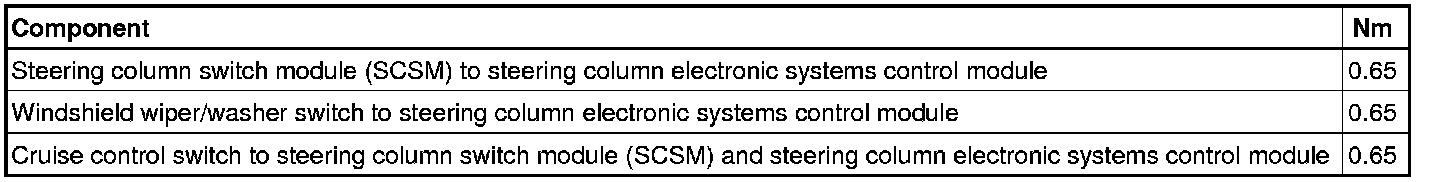

Tightening Specifications
