Microphone Unit In Front Roof Module







Microphone Unit in Front Roof Module

The microphone unit (in front roof module) (R164) located in the front interior light (W1) can be replaced only as a complete unit.

- Switch off all electrical consumers.

- Remove the ignition key.

Removing

- Remove the front interior light.

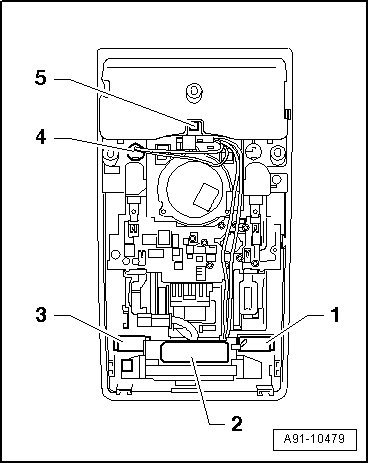

- Unclip the connector - 5 - from retainer in the front interior light and disconnect the connector.





- Pry the individual microphones - 1 -, - 3 - and - 4 - out of the retainer.

Installing

- Install in reverse order.
