Distance Sensor: Service and Repair

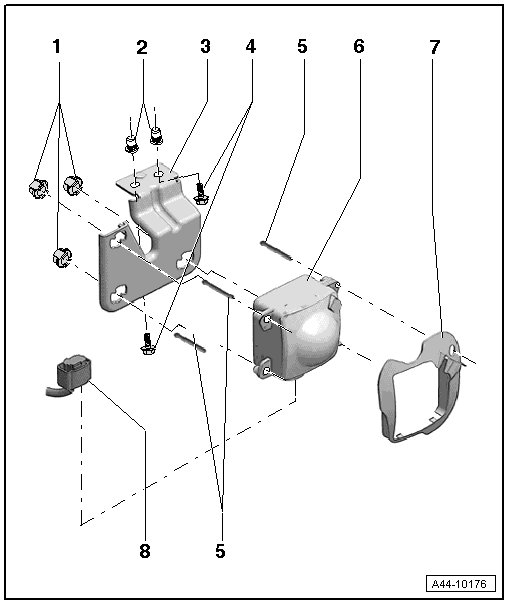

Adaptive Cruise Control Sensor Assembly Overview






1 Nut

2 Threaded Sleeve

• Pressed inside the longitudinal member.

3 Bracket

• Removing and installing, refer to => [ Remove the Adaptive Cruise Control Sensor with the Bracket ] Removal and Replacement.

4 Bolt

• 8 Nm

5 Stud

• Observe adjustment dimension when installing. Refer to => [ Measure dimension of all studs. ] Removal and Replacement.

6 Adaptive Cruise Control Sensor (G550)

• Removing and installing, refer to => [ Adaptive Cruise Control Sensor ] Removal and Replacement.

7 Sensor Cover

• Removing and installing, refer to => [ Removing the Cover from the Adaptive Cruise Control Sensor ] Removal and Replacement.

8 Connector
