External Audio Source Connection, Connectors, External Audio Source Connection, AUX IN







Connectors, External Audio Source Connection, AUX IN

• Unlisted connector terminals are not assigned.

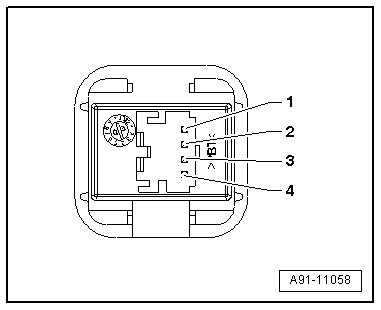

4-Pin Multi-Pin Connector (T4i) (CAN)





All pins are connected to the radio (R).

1 LF ground
2 LF left
3 LF right
4 Terminal 31

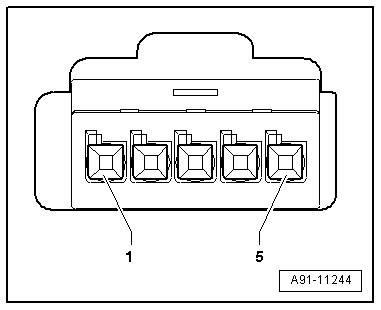

5-Pin Multi-Pin Connector (T5g) (MMI)





All pins are connected to the information electronics control module 1 (J794).

1 LF ground
2 LF left
3 LF right
4 Screen ground
5 Detect
