3-Pin Relay / Fuse Panel







Fuses

3-Pin relay / fuse panel

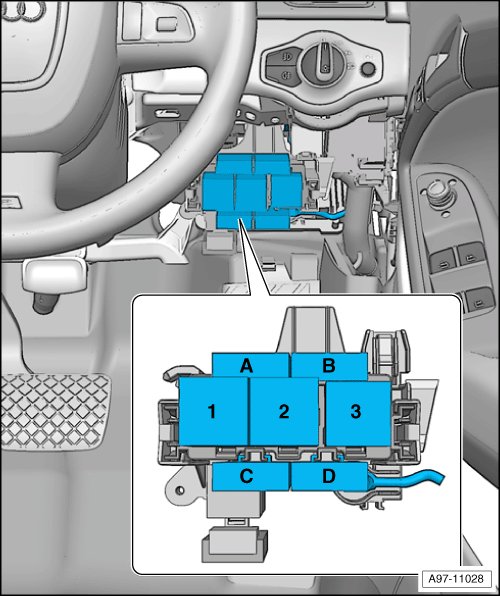

Component Location 3-Pin relay / fuse panel for models with left-hand drive:
Below instrument panel driver's side on relay / fuse panel with Vehicle Electrical System Control Module -J519- and threaded connection.
1) Only models with diesel engine

Note:
• Illustration shows models with left-hand drive.

• Illustration for models with right-hand drive .






A - Not used

B - Not used

C - Auxiliary Heater Fuse -S126- (1), 40 A

D - Auxiliary Heater Fuse 2 -S328- (1), 60 A

Component Location 3-Pin relay / fuse panel for models with right-hand drive:
Below instrument panel driver's side on relay / fuse panel with Vehicle Electrical System Control Module -J519- and threaded connection.
2) Only models with diesel engine

Note:
• Illustration shows models with right-hand drive.

• Illustration for models with left-hand drive .






A - Not used

B - Not used

C - Auxiliary Heater Fuse -S126- (2), 40 A

D - Auxiliary Heater Fuse 2 -S328- (2), 60 A
