System Specifications

Cylinder Head
Tighten in 3 Stages:
Tighten to 40 Nm
Tighten an additional 90°
Tighten an additional 90°

Camshaft Guide Frame Tightening Specifications and Sequence

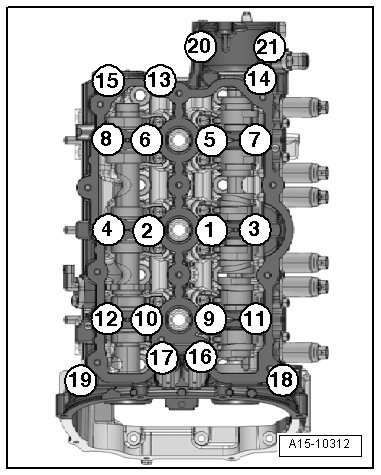

The illustration shows the guide frame for the left cylinder head.
Replace the guide frame bolts.
Tighten the bolts in 3 steps in the following sequence: - 1 to 21 -:
Install bolts by hand as far as the stop.
The guide frame must be touching the entire contact surface of the cylinder head.
Tighten to 8 Nm.
Tighten an additional 90°

Maximum warp 0.05 mm

Exhaust Manifold Tightening Torque and Sequence Specifications

Camshaft Gear/Sprocket Torque Specifications

Intake Manifold Tightening Torque and Sequence Specifications
