System Specifications

Fastener Tightening Specifications

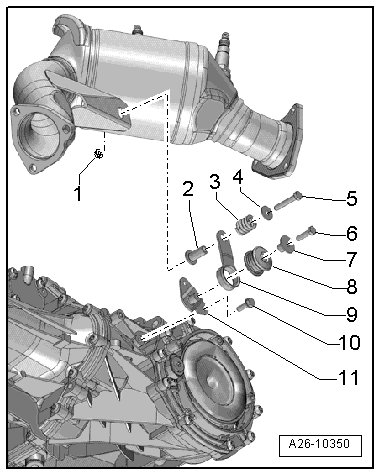

Catalytic Converter Mount Components - Vehicles with Automatic Transmission 0B6






1. Nut - 23 Nm

2. Spacer sleeve

3. Pressure spring

4. Washer

5. Bolt

6. Bolt - 23 Nm

7. Spacer sleeve

8. Adjusting buffer

9. Tab

10. Bolt - 23 Nm

11. Bracket


• The illustration shows the right mounting. The left is a mirror image of the right.

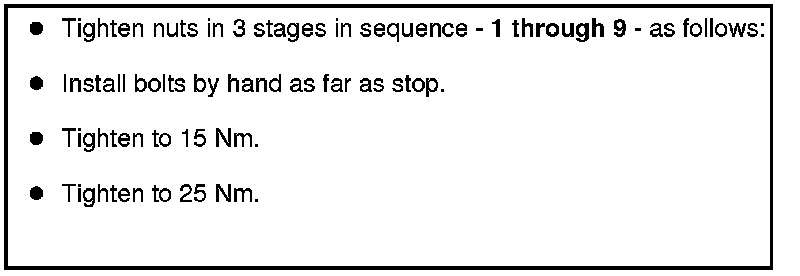

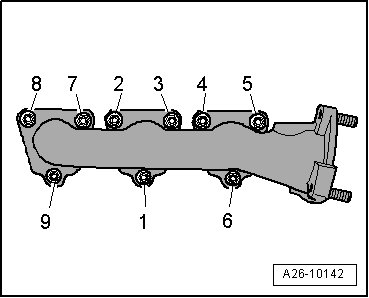

Left Exhaust Manifold, Tightening Specifications and Sequence

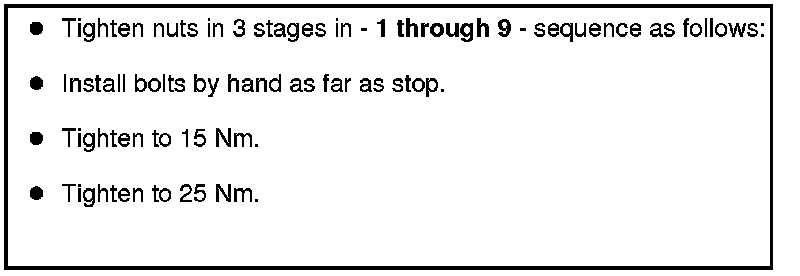

Right Exhaust Manifold, Tightening Specifications and Sequence
