Battery, Preparing For Support Mode






Battery, Preparing for Support Mode

Procedure

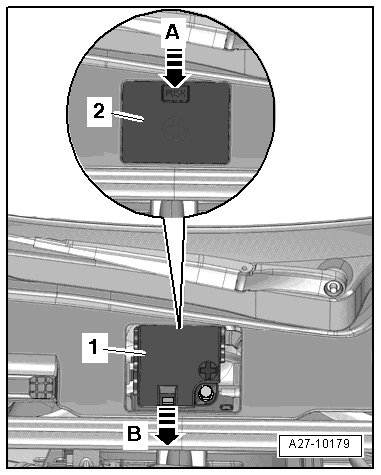

- Remove the cover - 2 - while pressing on - arrow A -.

- Release the tab - arrow B - and open the cover - 1 -.

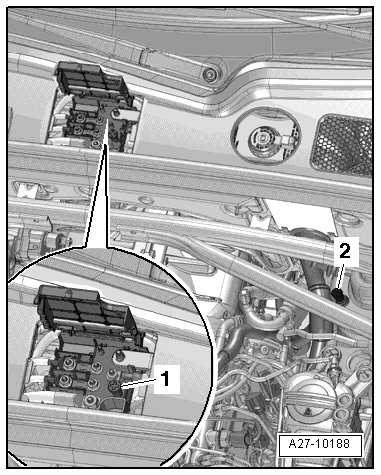

- Connect the battery charger red charging "+" clamp to the positive terminal clamp - 1 - and the black charging"-" clamp to the negative "-" terminal clamp - 2 -.






- Connect the battery charger electrical system connector and switch the charger on.
