Locks - Central Locking System Inoperative
57 Central locking inoperative after repair57 10 16
2021827/1
March 22, 2010

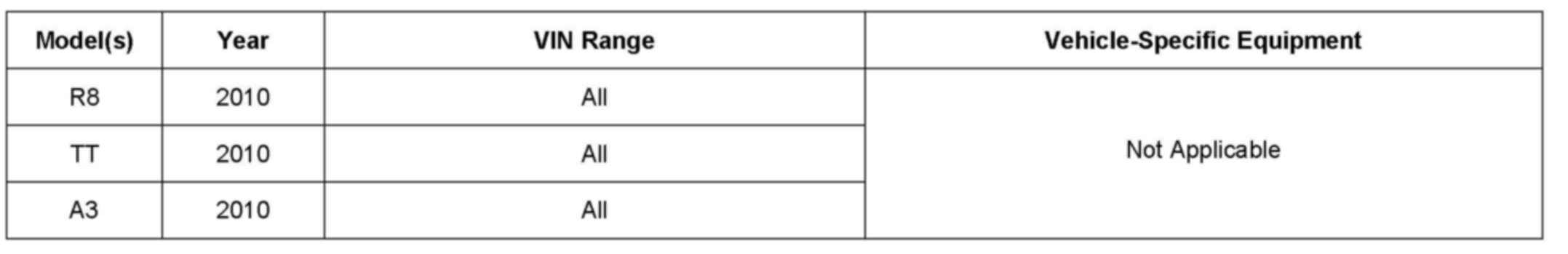

Affected Vehicles
Condition
After replacing vehicle electrical system control unit J519 (address code 09), the central locking system is inoperative.
Technical Background
In the replacement vehicle electrical system control unit, the factory central locking mode is active.
Production Solution
Not applicable.
Service
In vehicle electrical system control unit J519 (address code 09), change the value in adaptation channel 19 from 1 to 0 using vehicle self-diagnosis in the VAS scan tool.
Warranty
This TSB is informational only and not applicable to any Audi warranty.
Correcting the adaptation values is considered part of the module replacement repair.
Additional Information
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
