System Diagram

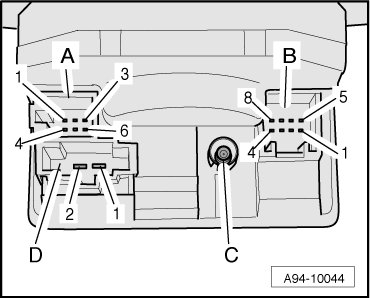

Access/Start Authorization Switch, Connector Assignment

• Induction coil for immobilizer is secured to access/start authorization switch (E415) and cannot be replaced separately.

• If induction coil is malfunctioning, access/start authorization switch must be replaced.

A - Connector Socket





1. Terminal 30

2. Terminal 31

3. Sensor bus

4. Electric steering lock, terminal 15

5. Electric steering lock, terminal 50

6. Switch P

B - Connector Socket

1. Illumination Start button

2. Start button, On position

3. Start button, Start position

4. Illumination Stop button

5. Stop button

6. Stop button

7. Brake pedal switch

8. Not used

C - Connector Socket

To Antenna for remote control

D - Connector Socket

1. Terminal 30

2. Electric steering lock (ESL)
