Removal and Replacement






Adaptive Cruise Control Sensor

Special tools, testers and auxiliary items required

• Torque wrench (V.A.G 1783)

Removing

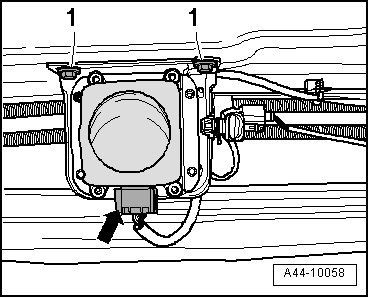

• The adaptive cruise control sensor (G550) is located behind the radar cover in the front bumper.

- Remove the front bumper cover.

- Disconnect the connector - arrow -.






- Remove the hex bolts - 1 -.

- Remove the adaptive cruise control sensor.

Installing

Install in reverse order of removal. Note the following:

• Studs in frame are preset. If necessary, correct adjustment.

- Place the adaptive cruise control sensor on a soft, clean cloth.

Measure - a - on all the stud bolts.





Dimension - a - must be 34 mm.

- Install the hex bolts - 1 - and tighten them.






- Reconnect electrical harness connector - arrow -.

Tightening specifications, refer to => [ Adaptive Cruise Control Sensor Assembly Overview ] Adaptive Cruise Control Sensor Assembly Overview.

- Install the front bumper cover.

- Calibrate the adaptive cruise control. Refer to => [ Adjustment Procedure Using ACC Setting Device VAS 6190 ] Adjustment Procedure Using ACC Setting Device VAS 6190.
