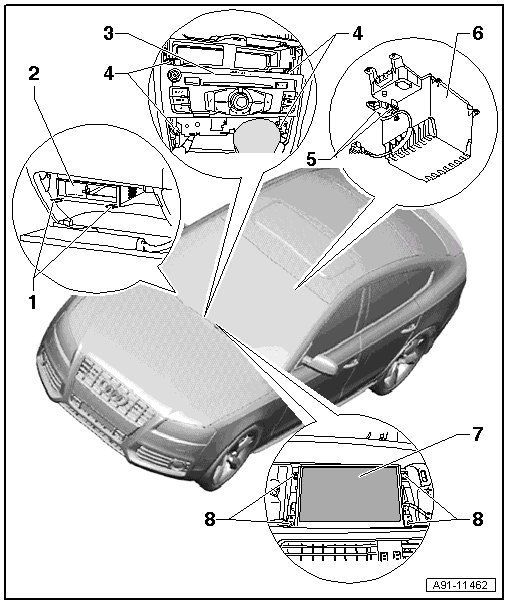

Radio System Overview

Radio System Overview






1 Radio Removal Tool (T10057)

2 External Audio Source Connection (R199) (AMI)

• CAN-Bus connectors, refer to => [ AMI Connectors (CAN) ] AMI Connectors (CAN).

• Removing and installing, refer to => [ AMI External Audio Source Connection ] AMI External Audio Source Connection.

3 Radio (R)

• Connectors, symphony, refer to => [ Radio Connectors, Symphony ] Radio Connectors, Symphony.

• Removing and installing, refer to => [ Radio ] Radio.

4 Screw

• 3 Nm

5 External Audio Source Connection (R199) (AUX IN)

• AUX IN connectors, refer to => [ AUX IN External Audio Source Connection Connectors ] AUX IN External Audio Source Connection Connectors.

• AUX IN, removing and installing, refer to => [ AUX IN External Audio Source Connection ] AUX IN External Audio Source Connection.

6 Storage Compartment

7 Front Information Display Control Head (J685)

• CAN-Bus connectors, refer to => [ Display Connectors ] Display Connectors.

• Removing and installing, refer to => [ Display ] Display.

8 Screw

• 2 Nm
